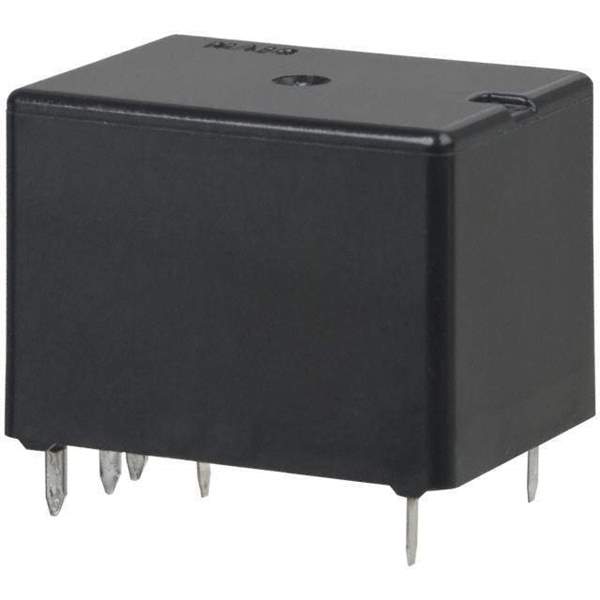

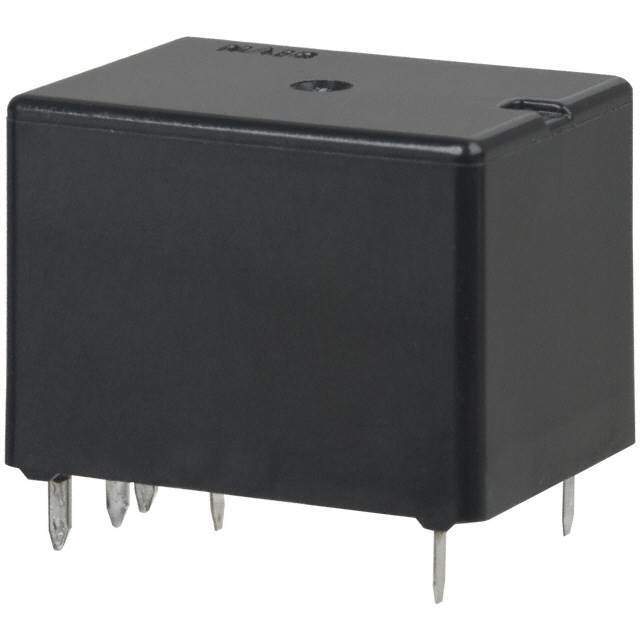

CF2-12V

Part No CF2-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDT 10A 12V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type Automotive
Coil Type Non Latching
Coil Current 53mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) Dual
Contact Rating (Current) 10A
Switching Voltage 14VDC - Nom
Turn On Voltage (Max) 7.2 VDC
Turn Off Voltage (Min) 1 VDC
Operate Time 10ms
Release Time 10ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 640 mW
Coil Resistance 225 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 202519-CF2-12V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CF2-12V CAD Model

Description

Product Description

The CF2-12V is a versatile component used in a broad range of applications. Known for its durability and efficiency, it is designed to deliver reliable performance even in demanding conditions.

Key Features and Benefits

  • Supports a wide voltage range for diverse operational uses.
  • High durability for prolonged usage and reliability.
  • Optimized size-to-performance ratio for enhanced efficiency.

Applications

  • Automotive battery systems.
  • Mobile and portable devices.
  • LED lighting solutions.
  • Power supply circuits.

Additional Details

This component is designed to offer exceptional energy efficiency, contributing to the overall sustainability of electronic systems where it is applied.
