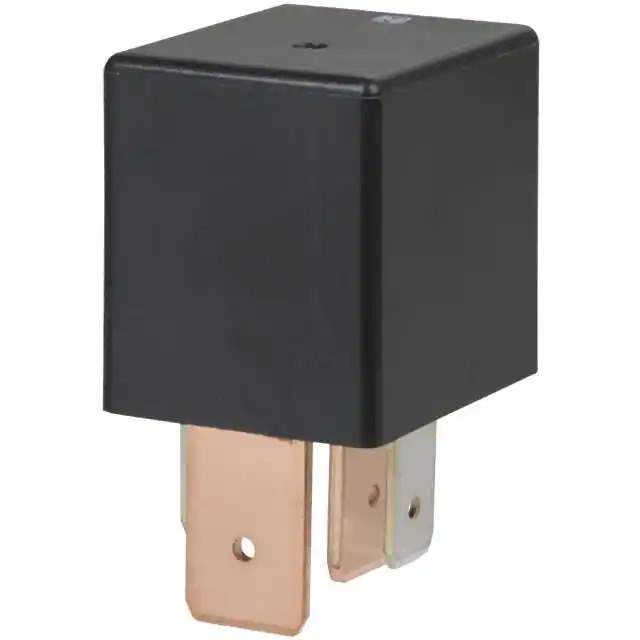

CB1AH-24V Real Image
Same model may have multiple batches, images only for reference.

CB1AH-24V

Part No CB1AH-24V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPST 70A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series CB
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 75 mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 28VDC - Nom
Must Operate Voltage 14 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 15 ms
Features Sealed - Fully
Mounting Type Socketable
Termination Style Plug In, Quick Connect - Multiple Sizes
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.8W
Coil Resistance 320 Ohms
Base Product Number CB1AH
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 576571-CB1AH-24V
Ultra Librarian 3D Model Ultra Librarian CB1AH-24V CAD Model

Description

The 576571-CB1AH-24V is an automotive relay from Panasonic's CB series. With its high-quality construction and reliable performance, the 576571-CB1AH-24V is an excellent choice for automotive applications. Manufactured by Panasonic.

  • Termination Style: Plug In, Quick Connect
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating (Current): 20 A
  • Contact Material: Silver Alloy, Cadmium Free
  • Coil Voltage: 24VDC
  • Coil Resistance: 320 Ohms
  • Coil Current: 75 mA
  • Operate Time: 15 ms
  • Release Time: 15 ms
  • Mounting Type: Socketable
  • Operating Temperature: -40°C ~ 85°C
  • Sealed: Fully Sealed
