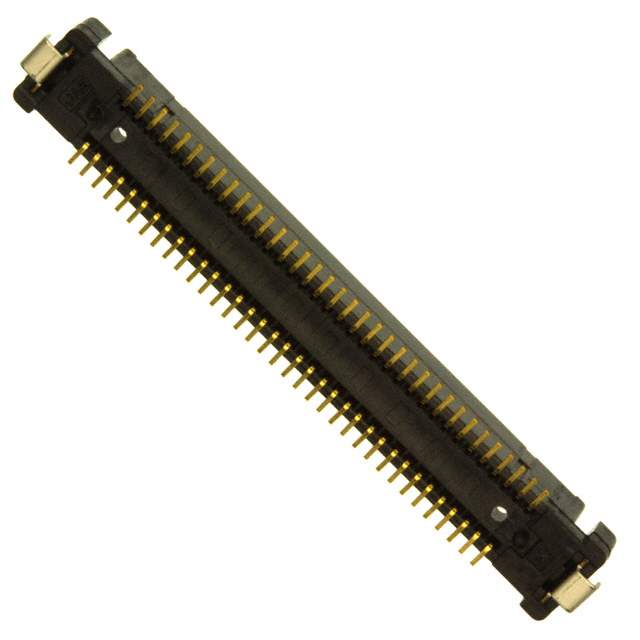

KX15-70K3DE Real Image
Same model may have multiple batches, images only for reference.

KX15-70K3DE

Part No KX15-70K3DE
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 0.8MM 70POS SMD GOLD / Conn Board to Board PL 70 POS 0.8mm Solder ST SMD
Datasheet
KX15-70K3DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Series KX15
Packaging Tray
Connector Type Plug, Center Strip Contacts
Number of Positions 70
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Mated Stacking Heights 5mm, 8mm, 11mm, 14mm, 17mm
Height Above Board 0.187" (4.75mm)
Win Source Part Number 778099-KX15-70K3DE
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name KX15
Introduction Date May 06, 2003
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KX15-70K3DE CAD Model

Description

The JAE Electronics 778099-KX15-70K3DE is a plug connector with center strip contacts and gold contact finish.

  • Series: KX15
  • Mounting: Surface Mount
  • Pitch: 0.031" (0.80mm)
  • Features: Board Guide and Solder Retention
  • Contact Finish Thickness: 3.9μin (0.10μm)
  • Height Above Board: 0.187" (4.75mm)
