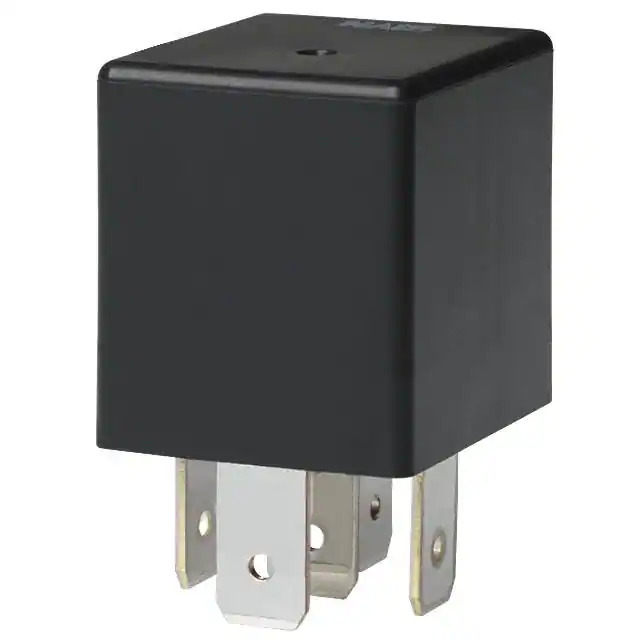

CB1-R-12V Panasonic
Same model may have multiple batches, images only for reference.

CB1-R-12V

Part No CB1-R-12V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 40A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic Electric Works
Series CB
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 134 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 40 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 15 ms
Features Resistor, Sealed - Fully
Mounting Type Socketable
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.6W
Coil Resistance 89.5 Ohms
Base Product Number CB1-R
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373507-CB1-R-12V
Ultra Librarian 3D Model Ultra Librarian CB1-R-12V CAD Model

Description

The CB1-R-12V is an automotive relay from the CB series by Panasonic Electric Works.

  • Contact Form: Single-pole, double-throw (SPDT)
  • Relay Type: Automotive Relay
  • Coil Voltage: 12VDC
  • Contact Rating: 40A
  • Termination Style: Quick Connect
  • Plug-In Type: 0.250 inches (6.3mm)
  • Temperature Range: -40°C to 85°C
  • Coil Resistance: 89.5 Ohms
  • Coil Power Consumption: 1.6W
