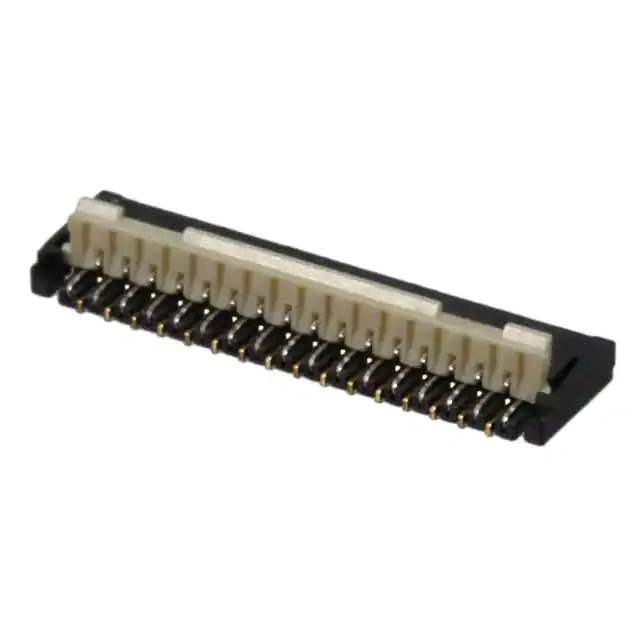

AYF333335 Real Image
Same model may have multiple batches, images only for reference.

AYF333335

Part No AYF333335
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 33POS 0.3MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Panasonic
Series Y3B
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 33
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 567408-AYF333335
Ultra Librarian 3D Model Ultra Librarian AYF333335 CAD Model

Description

The Y3B series FFC/FPC connector assembly, represented by the 567408-AYF333335, is a reliable and versatile solution for connecting flat flexible cables in electronic devices and manufactured by Panasonic.

  • Positions: 33
  • Pitch: 0.012" (0.30mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Height Above Board: 0.035" (0.88mm)
  • FFC/FPC Thickness: 0.20mm
  • Locking Feature: Flip lock and backlock mechanisms
  • Housing Material: Liquid crystal polymer (LCP)
  • Mounting: Surface mount and right-angle mounting
  • Standard Package: 5,000 pcs
