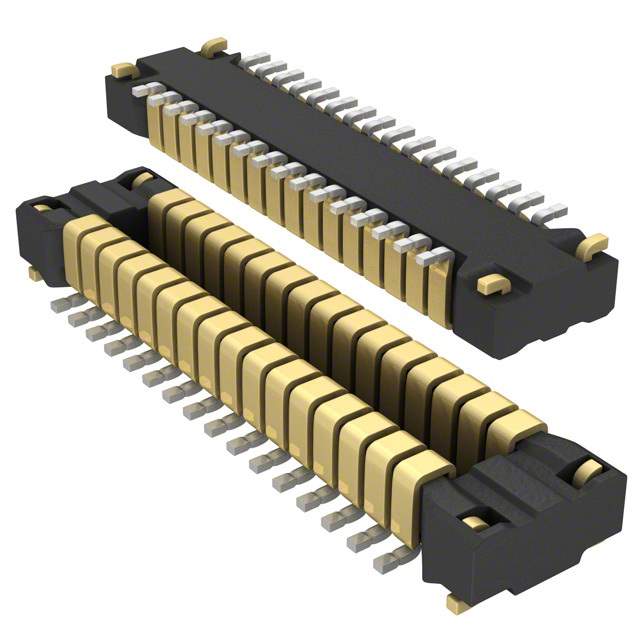

AXT632124 Real Image
Same model may have multiple batches, images only for reference.

AXT632124

Part No AXT632124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER .4MM 32POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 32
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
Win Source Part Number 1021137-AXT632124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT632124 CAD Model

Description

The Panasonic Electric Works Header Connector is a high-quality connector suitable for a wide range of applications.

  • Positions: 32
  • Pitch: 0.016 inches (0.40mm)
  • Feature: solder retention features
  • Type: two-row header connector with center strip contacts
  • Contact Finish: gold
  • Mated Stacking Heights: 1mm
  • Height Above Board: 0.033 inches (0.84mm)
  • Mounting: surface mountable
  • Category: Connectors, Interconnects
  • Status: active
  • Popularity: medium
  • Supply and Demand Status: balanced
