Same model may have multiple batches, images only for reference.

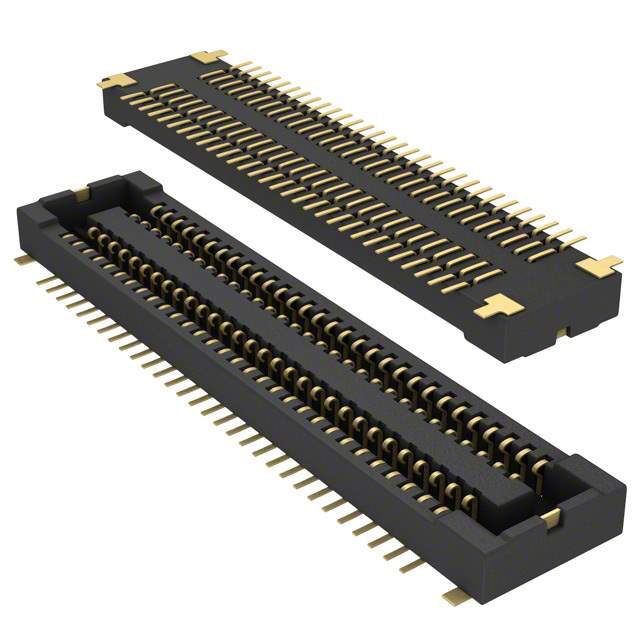

AXT560124A Real Image
Same model may have multiple batches, images only for reference.

AXT560124A

Part No AXT560124A
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET F4S .4MM 60POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Cut Strip
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1021126-AXT560124A
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXT560124A CAD Model

Description

The Panasonic Electric Works 1021126-AXT560124A is a socket connector with outer shroud contacts.

  • Positions: 60
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Mounting: Surface mount device (SMD)
  • Height Above Board: 0.038" (0.97mm)
  • Packaging: Cut strip
  • Quantity per Package: 500
