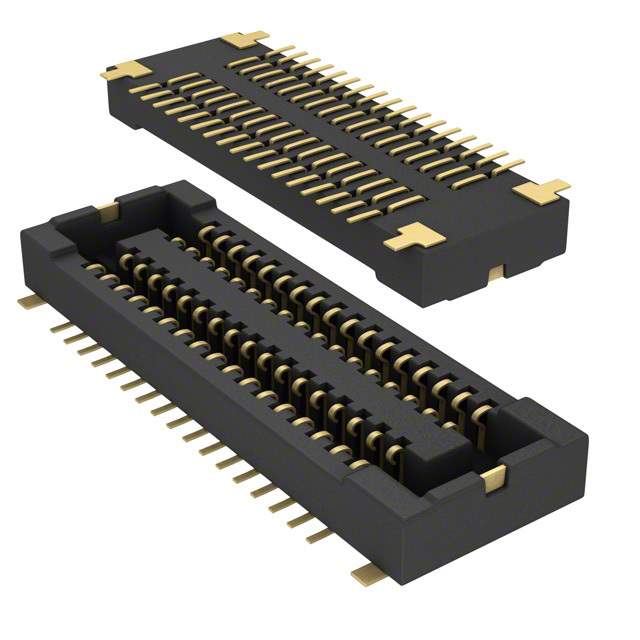

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 34
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1021120-AXT534124
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Signal Processing, Communications & Networking, Portable Devices
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXT534124 CAD Model

Description

The Panasonic Electric Works connector is a socket type connector with outer shroud contacts.

  • Connector Type: Socket
  • Contact Features: Outer Shroud
  • Number of Positions: 34
  • Number of Rows: 2
  • Pitch: 0.016 inches
  • Design Features: Solder Retention
  • Contact Finish: Gold
  • Height Above Board: 0.038 inches
  • Mated Stacking Height: 1mm
  • Suitable Applications: Power Management, Signal Processing, Communications, and Portable Devices
  • Packaging: Reel-TR
  • Mounting Type: SMD (SMT)
  • Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Limited
