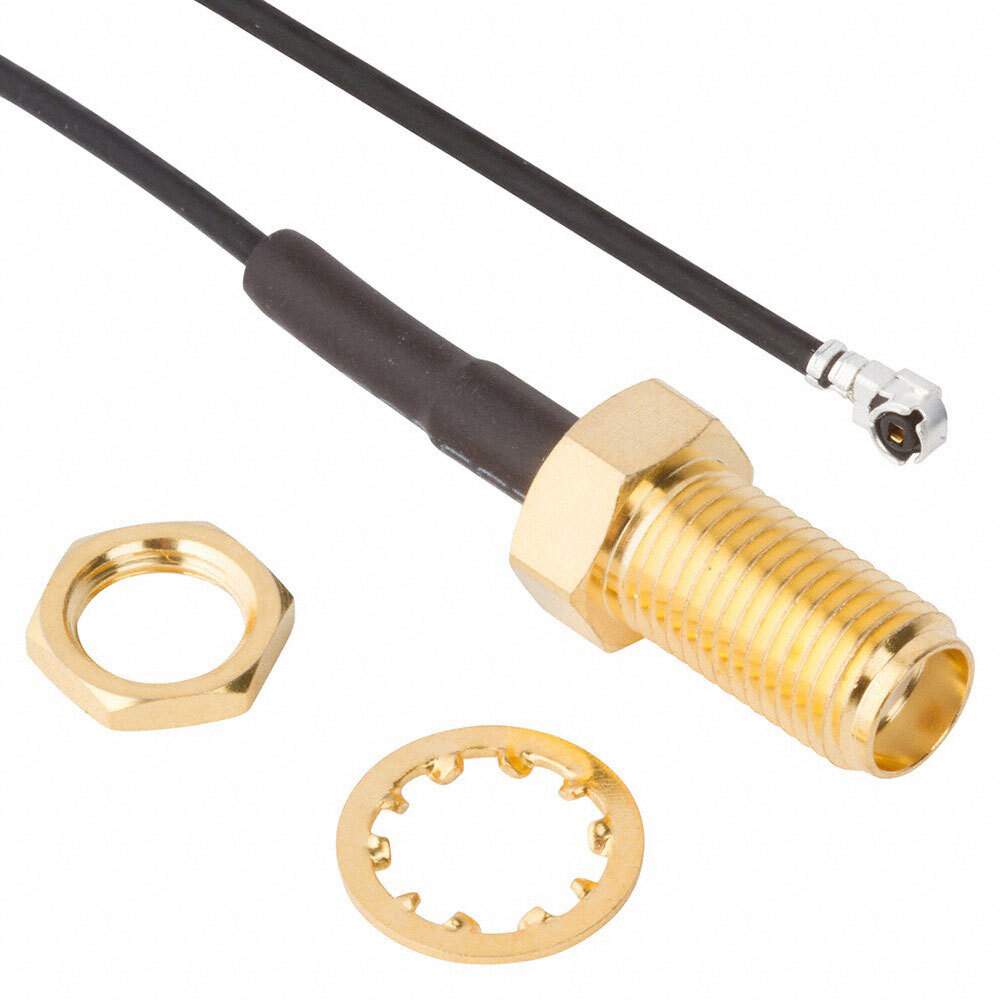

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Female
Style SMA to UMC
1st Connector SMA Female Jack
2nd Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
Length 3.937" (100.00mm)
Cable Type 1.32mm OD Coaxial Cable
Impedance 50 Ohm
Maximum Input Frequency 6GHz
Win Source Part Number 293346-RF2367
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RF2367 CAD Model

Description

The RF2367 is a female-to-female cable assembly manufactured by Amphenol RF Division.

  • Length: 3.937 inches
  • Cable Type: 1.32mm OD coaxial cable
  • Impedance: 50 ohms
  • Style: SMA to UMC
  • First Connector: SMA female jack
  • Second Connector: ultra miniature coaxial plug female socket, right angle
  • Supply and Demand Status: balanced
