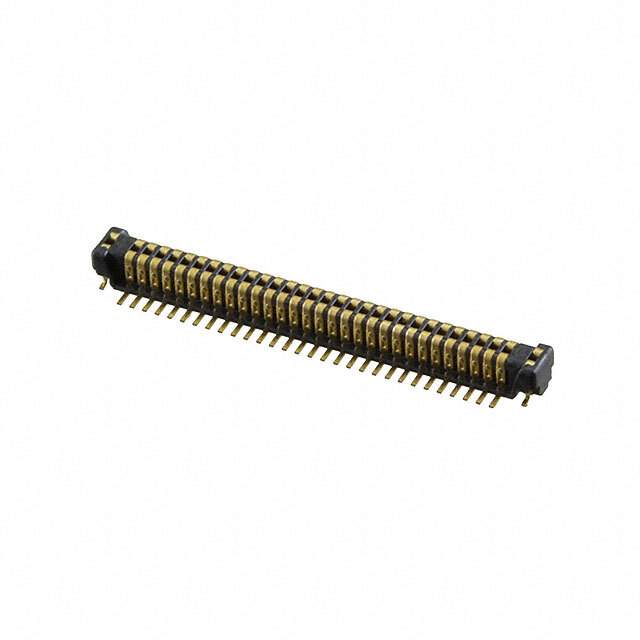

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P4S
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Header, Center Strip Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2.5mm
Height Above Board 0.049" (1.25mm)
Base Product Number AXT460
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 255-3316-1,255-3316-2,AXT460124-ND
Standard Package 3,000
Win Source Part Number 1047209-AXT460124
Ultra Librarian 3D Model Ultra Librarian AXT460124 CAD Model

Description

The Panasonic Electric Works P4S series header connector is a 60-position rectangular connector array with edge type, mezzanine (board to board) contact.

  • Series: P4S
  • Positions: 60
  • Pitch: 0.016" (0.40mm)
  • Rows: Two
  • Contacts: Center strip contacts
  • Features: Solder retention
  • Contact Finish: Gold
  • Height Above Board: 0.049" (1.25mm)
  • Mounting: SMD (SMT) technology
  • Package: Tape & reel (TR) or cut tape (CT)
  • Standard Package: 3,000
  • Mated Stacking Height: 1.5mm or 2.5mm
  • ECCN: EAR99
