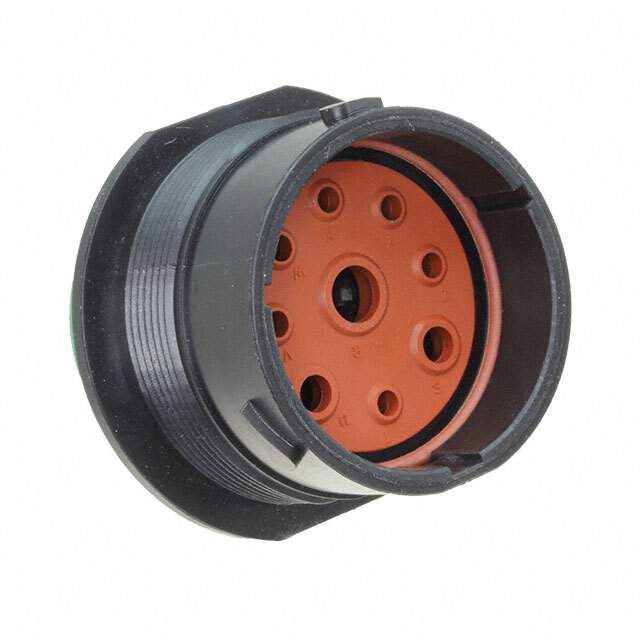

HDP24-24-9PN Real Image
Same model may have multiple batches, images only for reference.

HDP24-24-9PN

Part No HDP24-24-9PN
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 9
Shell Size - Insert 24-9
Contact Type Crimp
Contact Size 4 (1), 8 (2), 12 (6)
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
Other Names HDP24-24-9PN,1734-1731
Standard Package 30
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1294232-HDP24-24-9PN
Ultra Librarian 3D Model Ultra Librarian HDP24-24-9PN CAD Model

Description

The TE Connectivity Deutsch Connectors HDP24-24-9PN is a circular connector housing designed for male pins.

  • Positions: 9
  • Feature: Equipped with a dust cap
  • Contact Type: Crimp
  • Fastening Type: Bayonet lock
  • Shell Material: Polyamide (PA66), nylon 6/6, glass-filled
  • Insert Material: Polyetherimide (PEI)
  • Ingress Protection: IP68 (dust tight and waterproof)
  • Housing Color: Black
  • Orientation: Keyed
  • Temperature Range: -55°C to 125°C
  • Material Flammability Rating: UL94 V-1
