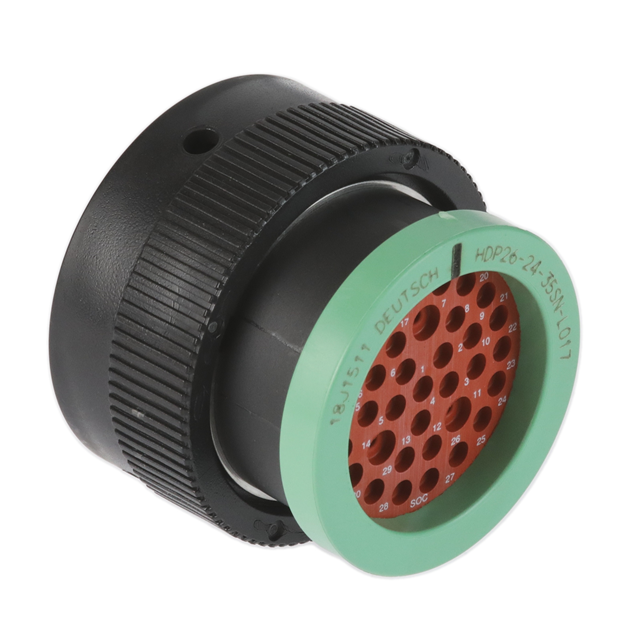

HDP26-24-35SN-L017 Real Image
Same model may have multiple batches, images only for reference.

HDP26-24-35SN-L017

Part No HDP26-24-35SN-L017
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 35
Shell Size - Insert 24-35
Contact Type Crimp
Contact Size 16 (3), 20 (32)
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black, Green
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut, Ring Adapter
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP26
Other Names 1734-1189
Standard Package 40
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1294238-HDP26-24-35SN-L017
Ultra Librarian 3D Model Ultra Librarian HDP26-24-35SN-L017 CAD Model

Description

The HDP26-24-35SN-L017 is a plug housing connector from TE Connectivity Deutsch Connectors, belonging to the Circular Connectors - Housings category.

  • Applications: Use in a variety of electronic applications, including automotive, aerospace, and military
  • Positions: 35
  • Features: Coupling nut, and a ring adapter
  • Ingress Protection: IP68 dust-tight and waterproof
