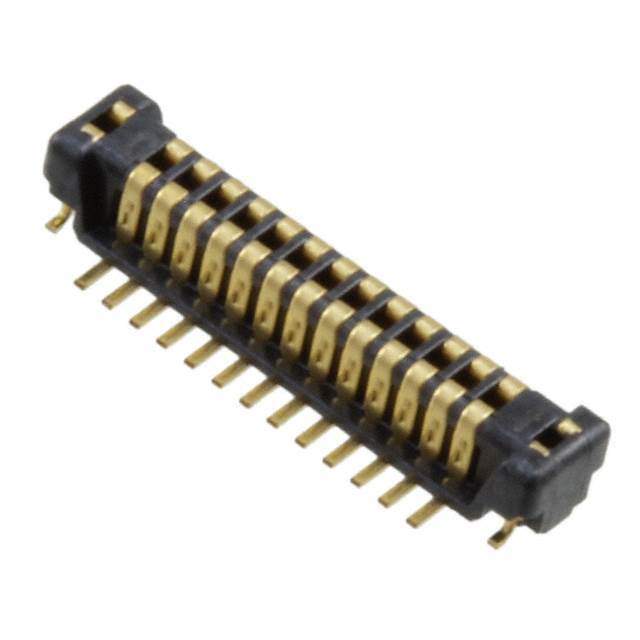

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 26
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2.5mm
Height Above Board 0.049" (1.25mm)
Win Source Part Number 1021104-AXT426124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT426124 CAD Model

Description

The Panasonic Electric Works AXT426124 is a header connector with 26 positions and a pitch of 0.016" (0.40mm).

  • Features: solder retention features and center strip contacts
  • Rows: two
  • Contact Finish: gold
  • Mounting: SMD (SMT) technology
  • Height Above Board: 0.049" (1.25mm)
  • Packaging: reel - TR
  • Quantity per Package: 3k pcs
  • Popularity: medium-popularity
  • Supply and Demand Status: sufficient
