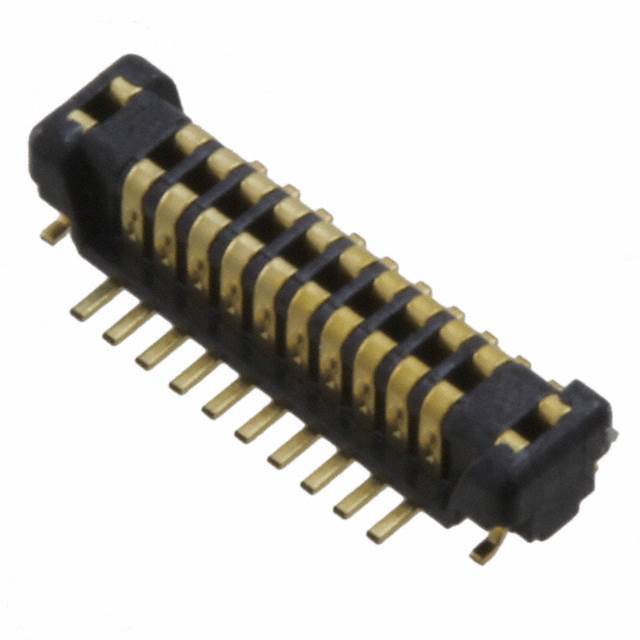

AXT420124

Name: AXT420124
Brand: Panasonic
SKU: 912365
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXT420124
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	P4S
Package	Tape & Reel
Product Status	Active
Connector Type	Header, Center Strip Contacts
Number of Positions	20
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	1.5mm, 2.5mm
Height Above Board	0.049" (1.25mm)
Base Product Number	AXT420
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	912365-AXT420124
Ultra Librarian 3D Model	Ultra Librarian AXT420124 CAD Model

Description

The AXT420124 is a rectangular connector array designed for board-to-board connections.

Positions: 20-position header
Contacts: Center strip contacts
Pitch: 0.016" (0.40mm)
Plating: Gold-plated
Height Above the Board: 0.049" (1.25mm)
Mounting: Surface mountable
Series: P4S series from Panasonic
Standard Package: 3,000 pcs
