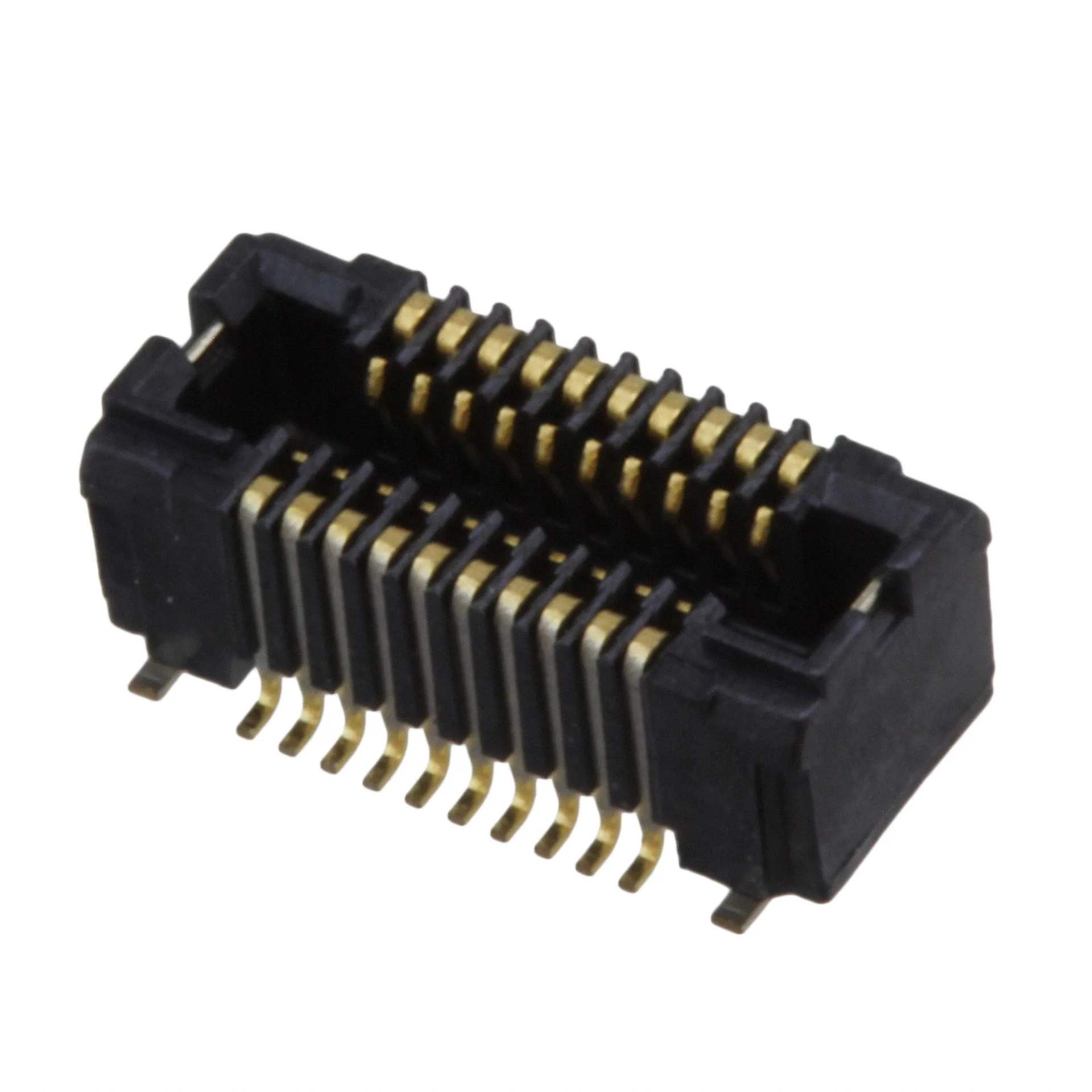

AXT320224 Real Image
Same model may have multiple batches, images only for reference.

AXT320224

Part No AXT320224
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 20POS SMD GOLD / 20 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 2.5mm, 3mm
Height Above Board 0.096" (2.45mm)
Base Product Number AXT320
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862796-AXT320224
Ultra Librarian 3D Model Ultra Librarian AXT320224 CAD Model

Description

The AXT320224 is a rectangular connector array designed for board-to-board connections.

  • Series: P4S
  • Positions: 20
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder retention
  • Contact Type: Socket outer shroud
  • Rows: Two
  • Contact Finish: Gold
  • Mated Stacking Heights: 2.5mm and 3mm
  • Height Above Board: 0.096" (2.45mm)
  • Mounting: Surface mountable
  • Package: Tape & reel
  • Manufacturer: Panasonic
  • Status: Active
