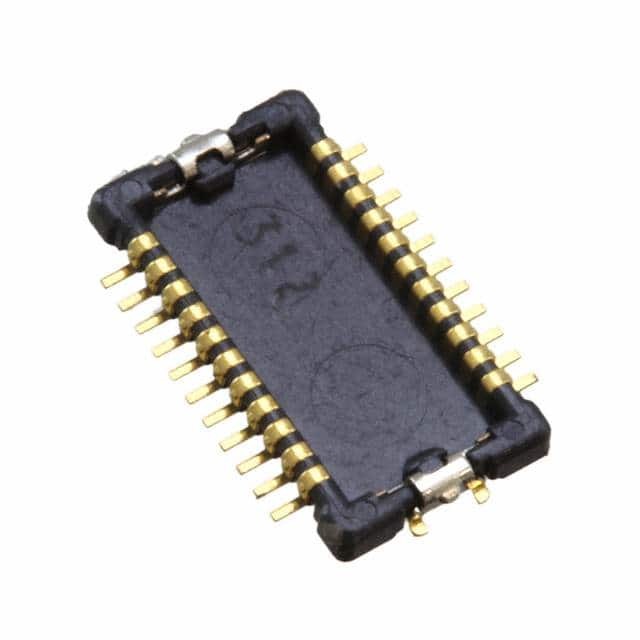

Part No AXK8L22124BG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 22POS SMD GOLD
Datasheet
AXK8L22124BG Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series F4
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 22
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.025" (0.63mm)
Base Product Number AXK8L22
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862790-AXK8L22124BG
Ultra Librarian 3D Model Ultra Librarian AXK8L22124BG CAD Model

Description

The 862790-AXK8L22124BG is a rectangular connector array in the F4 series from Panasonic.

  • Application: Board-to-board connections
  • Positions: 22
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder retention
  • Rows: Two
  • Contact Finish: Gold
  • Package: Tape and reel or cut tape
  • Standard Quantity: 1,000 pcs
  • Mated Stacking Height: 0.9mm
  • Height Above Board: 0.025" (0.63mm)
  • Mounting: Surface mount
  • Product Status: Active
  • HTSUS: 8536.69.4040
