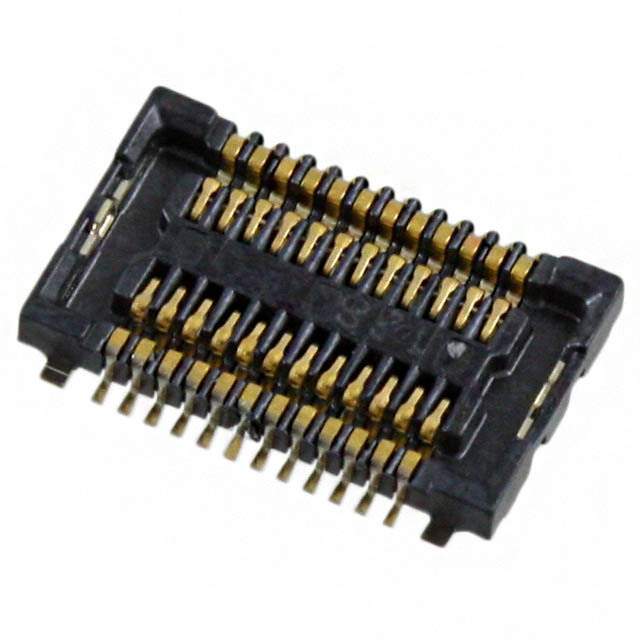

AXK7L24223G

Part No AXK7L24223G
Manufacturer Panasonic
Catalog Rectangular - Board to Board Connectors
Description Conn Board to Board RCP 24 POS 0.4mm Solder ST SMD Carton / CONN SOCKET FPC .4MM 24POS SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Win Source Part Number 109644-AXK7L24223G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AXK
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AXK7L24223G CAD Model

Description

AXK7L24223G

The AXK7L24223G is a high-quality connector offering excellent reliability and precision for board-to-board connections. It is suitable for both professional and consumer electronic applications needing stable and consistent connectivity.

  • Features and Benefits:
    • Compact size optimized for modern device requirements.
    • Highly durable materials for prolonged use.
    • Optimized design for secure and quick installation.
    • Wide operational temperature range.
  • Applications:
    • Home electronics
    • Security systems
    • Portable equipment
    • Control panels

    This connector aligns perfectly with devices demanding compact and reliable board-to-board connections.
