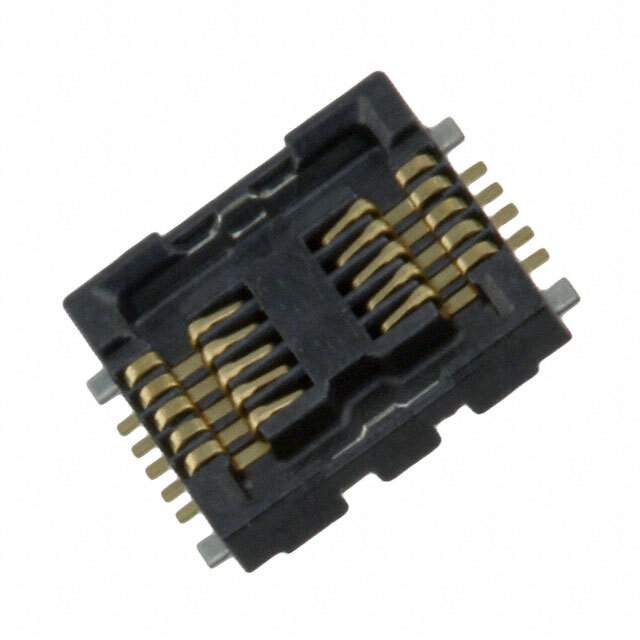

The AXK7L10227 is a board-to-board connector manufactured by Panasonic. It's designed for high-density interconnections in compact electronic devices. Part of the Panasonic connector family, it emphasizes reliability and signal integrity in demanding applications.

Applications

• Mobile Phones
• Digital Cameras
• Portable Gaming Consoles
• Tablets
• Other Compact Consumer Electronics

Features

• Fine Pitch Design: Enables high-density mounting on PCBs, maximizing space utilization.
• SMT Compatibility: Designed for Surface Mount Technology, facilitating automated assembly processes.
• High-Speed Data Transmission: Optimized for efficient signal transfer, minimizing signal loss and crosstalk.
• Robust Mechanical Design: Ensures secure and reliable connections, withstanding mechanical stress and vibration.
• Low Profile: Ideal for applications with limited vertical space.

Benefits

• Reduced Board Space: Allows for smaller and more compact product designs.
• Improved Signal Integrity: Ensures clear and reliable data transmission, minimizing errors.
• Automated Assembly: Streamlines the manufacturing process, reducing production costs.
• Enhanced Durability: Provides long-lasting performance, even in demanding environments.
• Versatile Connectivity: Supports a wide range of applications and devices.

Additional Details

The AXK7L10227 is typically used in applications requiring a reliable, high-density connection between two printed circuit boards. It features a fine pitch, which allows for a large number of contacts in a small area. This is particularly important in compact electronic devices where space is at a premium. The connector is designed for surface mount soldering, which allows for automated assembly and reduces manufacturing costs. The specific number of contacts, voltage rating, current rating, and operating temperature range can be found in the official Panasonic datasheet. Refer to the datasheet to ensure proper application and compatibility.
