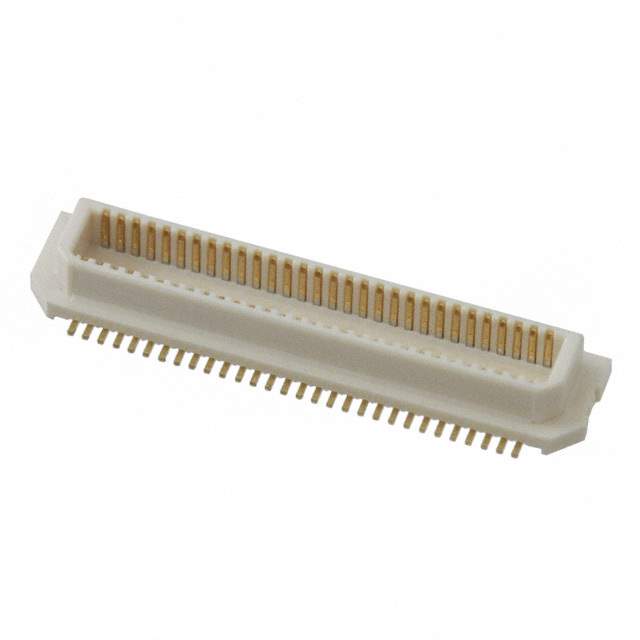

AXK660337YG Real Image
Same model may have multiple batches, images only for reference.

AXK660337YG

Part No AXK660337YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 60POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Tape and Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Style SMD
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm
Height Above Board 0.094" (2.40mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Win Source Part Number 709563-AXK660337YG
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AXK660337YG CAD Model

Description

The Panasonic Electric Works AXK660337YG is a 60-position header connector with an outer shroud contact. It has a pitch of 0.020" (0.50mm) and a mounting style of SMD.

  • Height Above Board: 0.094" (2.40mm)
  • Mated Stacking Height: 3mm
  • Packaging: Tape and reel
  • Contact Finish: Gold
  • Applications: Consumer electronics and automotive
