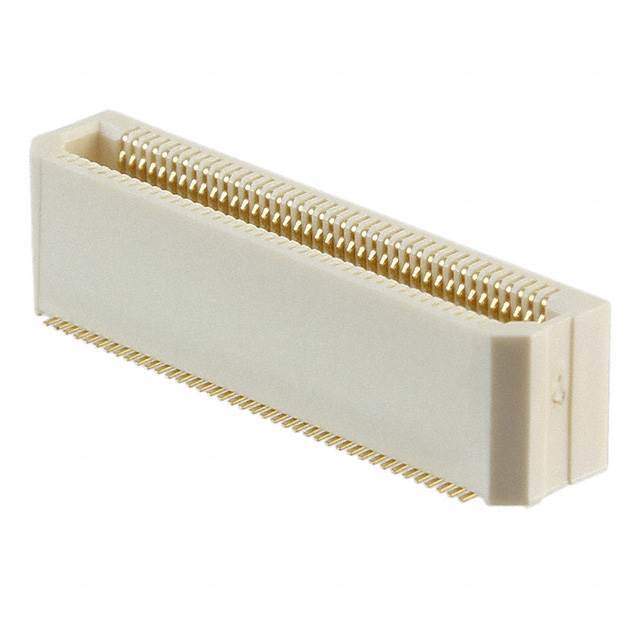

AXK5S80347YG Real Image
Same model may have multiple batches, images only for reference.

AXK5S80347YG

Part No AXK5S80347YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description NARROW-PITCH CONNECTORS FOR BOARD-TO-FPC CONNECTION | CONN SOCKET 80POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Cut Tape (CT)
Connector Type Socket, Center Strip Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Style SMD
Contact Finish Gold
Mated Stacking Heights 7mm, 8mm, 9mm
Height Above Board 0.238" (6.05mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 758634-AXK5S80347YG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AXK5S80347YG CAD Model

Description

The Panasonic Electric Works 758634-AXK5S80347YG is a socket connector with center strip contacts.

  • Positions: 80
  • Pitch: 0.020" (0.50mm)
  • Mounting: Surface Mount
  • Contact Finish: Gold
  • Mated Stacking Heights: 7mm, 8mm, and 9mm
  • Height Above Board: 0.238" (6.05mm)
  • Family: AXK
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
