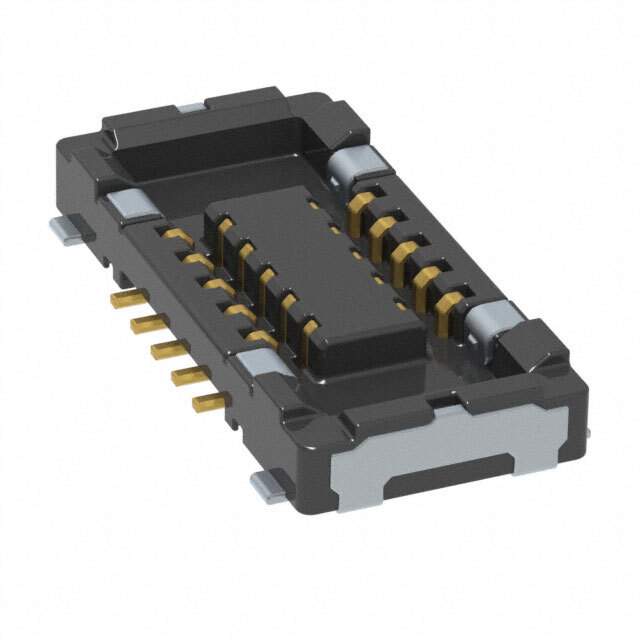

AXG7100J7A

Name: AXG7100J7A
Brand: Panasonic
SKU: 1047192
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AXG7100J7A
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 10POS SMD GOLD / 12 (10 + 2 Power) Position Connector Socket, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic Electric Works
Series	A35US
Package	Strip
Product Status	Obsolete
Connector Type	Socket, Center Strip Contacts
Number of Positions	12 (10 + 2 Power)
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	0.6mm
Height Above Board	0.023" (0.59mm)
Base Product Number	AXG710
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	255-5248
Standard Package	500
Win Source Part Number	1047192-AXG7100J7A
Ultra Librarian 3D Model	Ultra Librarian AXG7100J7A CAD Model

Description

The A35US series connector from Panasonic Electric Works is a rectangular array with edge type and mezzanine (board to board) configuration.

Series: A35US
Positions: 12 (10 + 2 power)
Pitch: 0.014" (0.35mm)
Type: socket with center strip contacts
Rows: two
Contact Finish: gold
Package: strip
Mated Stacking Heights: 0.6mm
Height above the Board: 0.023" (0.59mm)
Features: solder retention
Mounting: surface mount technology (SMT)
Standard Package: 500 units
Alternative Parts: 504618-4010, 504618-3010, and 504622-4010
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
Status: obsolete
Other Names: 255-5248
Base Product Number: AXG710
