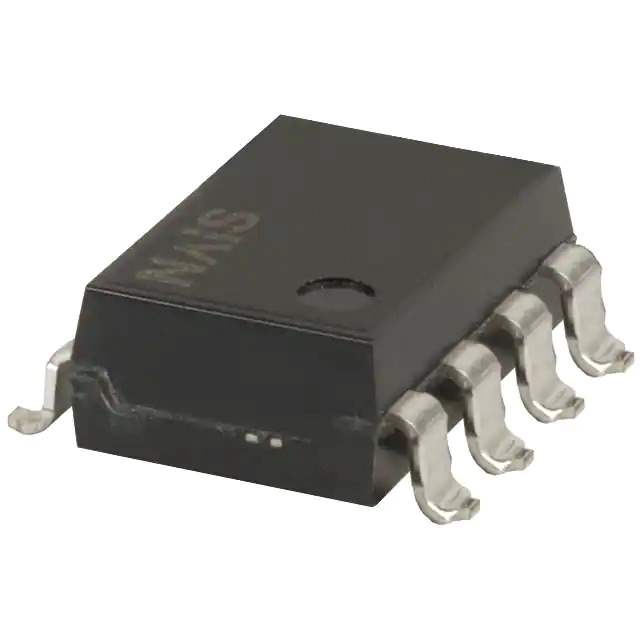

AQW654AX Real Image
Same model may have multiple batches, images only for reference.

AQW654AX

Part No AQW654AX
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY SPST-NO/NC 120MA 0-400V / Solid State SPST-NO + SPST-NC (1 Form A and B) 8-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQW
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO + SPST-NC (1 Form A and B)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 16 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number AQW654
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 564437-AQW654AX
Ultra Librarian 3D Model Ultra Librarian AQW654AX CAD Model

Description

The PhotoMOS™ AQW654AX is a solid-state relay manufactured by Panasonic.

  • Series: AQW
  • Termination Style: Gull wing
  • Mounting Type: Surface mount
  • Package: 8-SMD
  • Input Voltage: 1.14VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO + SPST-NC (1 Form A and B)
  • Maximum On-State Resistance: 16 Ohms
  • Load Current: 120 mA
  • Load Voltage Range: 0 V to 400 V
