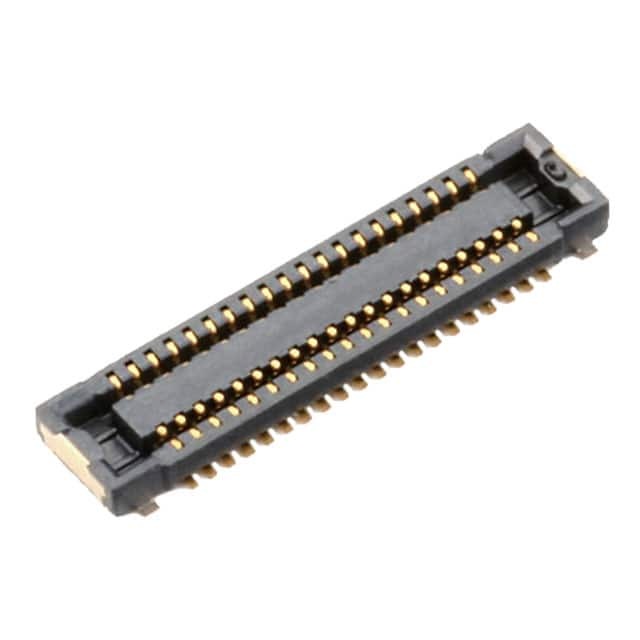

Same model may have multiple batches, images only for reference.
AXF5A4012
Same model may have multiple batches, images only for reference.

AXF5A4012

Part No AXF5A4012
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 40POS SMD GOLD / 40 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A35P
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 40
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXF5A4
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862742-AXF5A4012
Ultra Librarian 3D Model Ultra Librarian AXF5A4012 CAD Model

Description

The Panasonic A35P series is a high-performance rectangular connector array suitable for various board-to-board connections. With 40 positions and a pitch of 0.014" (0.35mm), this connector offers reliable and secure connections.

  • Series: A35P series
  • Application: Board-to-board connections
  • Positions: 40
  • Pitch: 0.014" (0.35mm)
  • Connector Type: Socket features center strip contacts
  • Features: Solder retention
  • Mounting: Surface mount mounting
  • Height Above the Board: 0.030" (0.75mm)
  • Packaging: Tape & reel packaging
  • Standard Package Size: 5,000 pcs
  • Manufacturer: Panasonic
  • Product Line: AXF5A4
  • Status: Currently active
