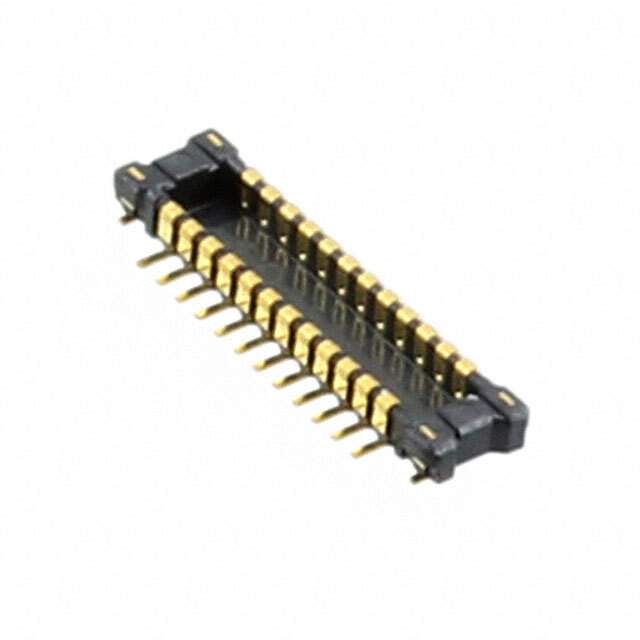

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 24
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020954-AXE824124A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXE824124A CAD Model

Description

The Panasonic Electric Works AXE824124A is a header, center strip contacts connector that has a number of positions of 24 and a pitch of 0.014" (0.35mm).

  • Manufacturer: Panasonic Electric Works
  • Product Name: AXE824124A
  • Type: header, center strip contacts connector
  • Positions: 24
  • Pitch: 0.014" (0.35mm)
  • Solder Retention: yes
  • Mounting: SMD (SMT)
  • Contact Finish: gold
  • Mated Stacking Height: 0.8mm
  • Height Above Board: 0.026" (0.65mm)
  • Popularity: popular
  • Supply and Demand Status: balanced
  • Package Quantity: 500
