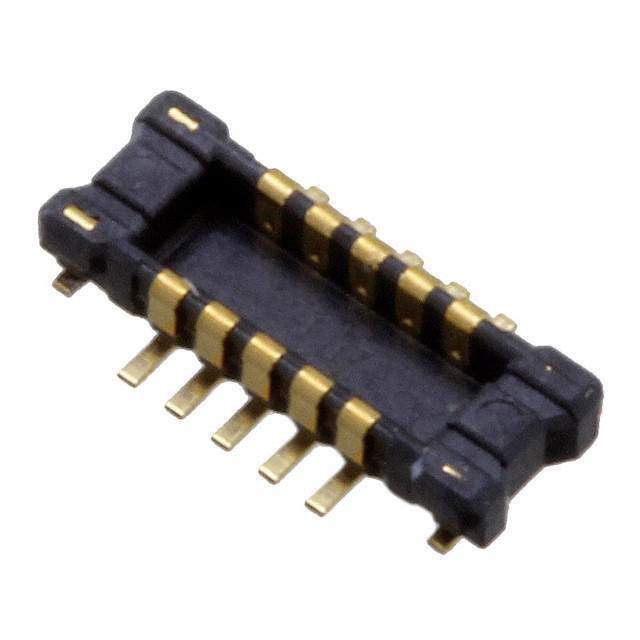

The AXE6E1026 is a rectangular connector manufactured by Panasonic. This connector is part of the AXE6 series, designed for board-to-board connections in various electronic devices. These connectors are known for their reliability, high-density packaging, and secure mating.

Applications:

• Board-to-Board Connections
• Industrial Equipment
• Medical Devices
• Telecommunications Equipment
• Consumer Electronics

Features:

• High-Density Connector
• Board-to-Board Connection
• Reliable Contact Design
• Compact Size
• Durable Construction

Benefits:

• Provides secure and reliable electrical connections between PCBs.
• Enables high-density packaging of electronic components.
• Ensures stable performance in demanding environments.
• Saves space on circuit boards due to its compact size.
• Offers long-term reliability and durability.

Technical Specifications:

Number of Contacts: 26
Contact Material: Copper Alloy
Insulator Material: Thermoplastic
Pitch: 0.8 mm
Current Rating: 0.5A per contact
Voltage Rating: 50V AC/DC
Operating Temperature: -40°C to +85°C

The AXE6E1026 connector is designed for automated assembly processes and is RoHS compliant. Always refer to the official Panasonic datasheet for precise mechanical dimensions, mating force specifications, and recommended PCB layout guidelines. These connectors are widely used in applications requiring high-density and reliable board-to-board connections.
