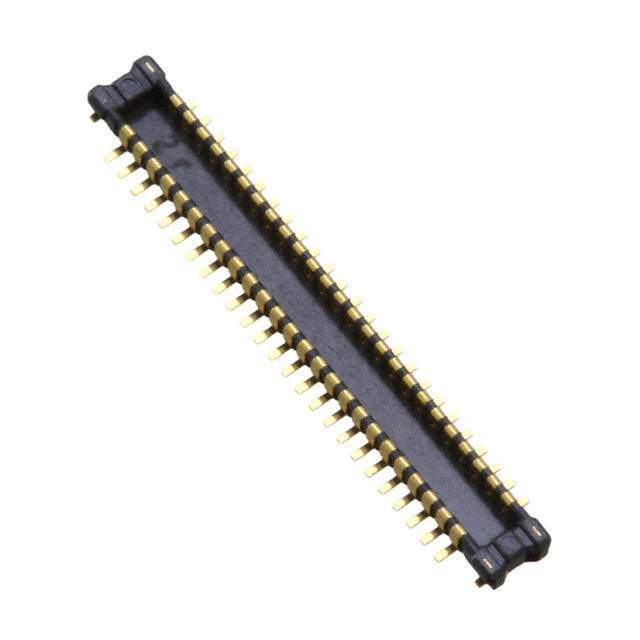

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020946-AXE650224
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXE650224 CAD Model

Description

The Panasonic Electric Works header connector is a reliable and efficient connector used in various electronic devices.

  • Positions: 50
  • Contact Type: outer shroud
  • Rows: two
  • Pitch: 0.016" (0.40mm)
  • Feature: designed with solder retention feature
  • Contact Finish: made of gold material which ensures a stable and secure connection.
  • Height Above Board: 0.026" (0.65mm)
  • Mated Stacking Height: 1mm
  • Mounting: using surface-mount technology.
  • Category: connectors and interconnects
  • Status: currently in active status.
