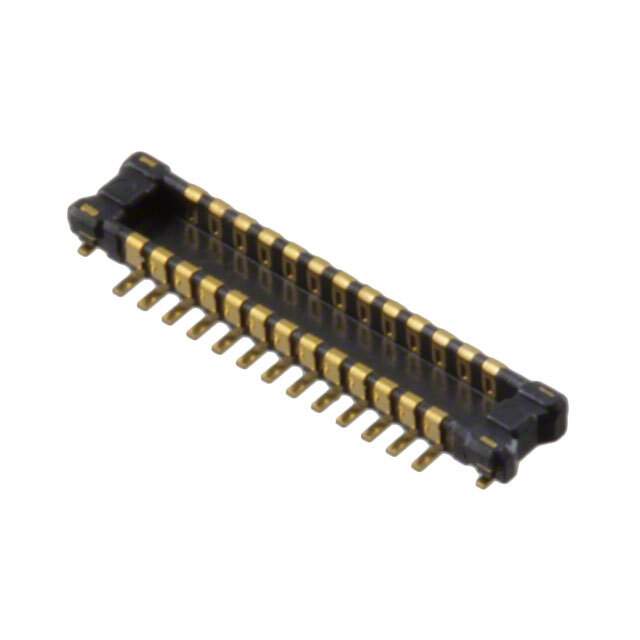

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 26
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 143588-AXE626124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXE626124 CAD Model

Description

AXE626124 Diode

The AXE626124 diode is engineered for high reliability and efficiency, making it ideal for various applications requiring precise rectification and protection.

  • Fast Switching Speed
  • Low Forward Voltage Drop
  • High Surge Current Capability

Applications and Projects:

  • Rectifiers
  • Voltage Clamping
  • Signal Demodulation

Features and Benefits:

  • Reduces power dissipation in high-frequency applications.
  • Provides excellent reverse recovery characteristics.
  • Durable performance in power-intensive applications.
