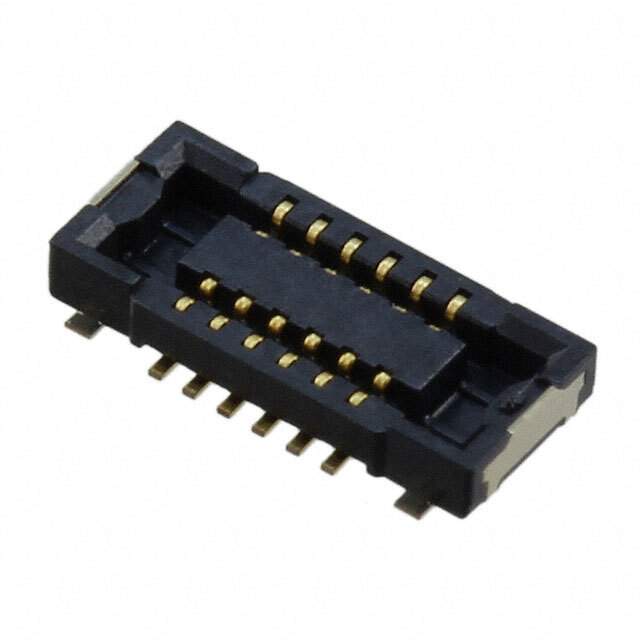

AXE5E1226 Real Image
Same model may have multiple batches, images only for reference.

AXE5E1226

Part No AXE5E1226
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 12POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Bulk
Connector Type Socket, Center Strip Contacts
Number of Positions 12
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Style SMD
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness Flash
Mated Stacking Heights 0.8mm
Height Above Board 0.030" (0.75mm)
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806685-AXE5E1226
Ultra Librarian 3D Model Ultra Librarian AXE5E1226 CAD Model

Description

The Panasonic Electric Works socket connector is a high-performance component that is designed to meet the needs of modern electronic devices. With 12 positions and a pitch of 0.016 inches, this connector is ideal for use in a variety of applications.

  • Positions: 12
  • Pitch: 0.016 inches
  • Features: Solder Retention, Center Strip Contacts
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Mated Stacking Height: 0.8mm
  • Height Above Board: 0.030 inches
  • Packaging: Bulk
  • Popularity: Medium
  • RoHS Compliant: Yes
  • MSL Level: 1 (unlimited)
