Same model may have multiple batches, images only for reference.

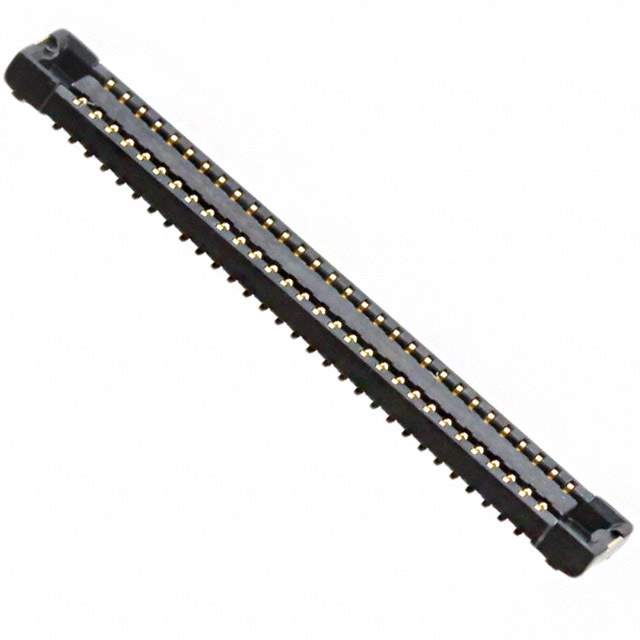

AXE560124 Real Image
Same model may have multiple batches, images only for reference.

AXE560124

Part No AXE560124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 60POS SMD GOLD / The 2.5 mm wide ultra-slim body contributes to further contributes to further enhancement of target equipment.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Reel
Part Status Obsolete (End Of Life)
Connector Type Socket, Center Strip Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Style SMD
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804028-AXE560124
Ultra Librarian 3D Model Ultra Librarian AXE560124 CAD Model

Description

The Panasonic Electric Works AXE560124 is an electronic component that is widely used in various applications.

  • Status: Obsolete (EOL)
  • Win Source Part Number: 804028-AXE560124
  • Type: Socket center strip contact connector
  • Pitch: 0.016 inches
  • Height Above Board: 0.030 inches
  • Packaging: Reel
  • Manufacturer Pack Quantity: 3,000
  • Supply and Demand Status: Balanced
