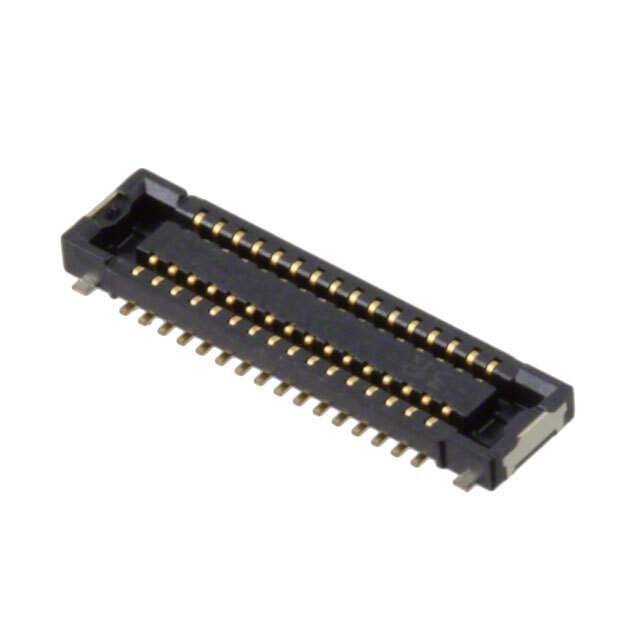

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series A4S
Package Tape & Reel
Product Status Obsolete
Connector Type Socket, Center Strip Contacts
Number of Positions 32
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE532
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348096-AXE532127
Ultra Librarian 3D Model Ultra Librarian AXE532127 CAD Model

Description

The AXE532127 is a 32-position socket connector manufactured by Panasonic Electric Works.

  • Series: A4S
  • Pitch: 0.016" (0.40mm)
  • Contact Type: Center Strip
  • Number of Rows: 2
  • Height Above Board: 0.030" (0.75mm)
  • Packaging: Tape & Reel
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
