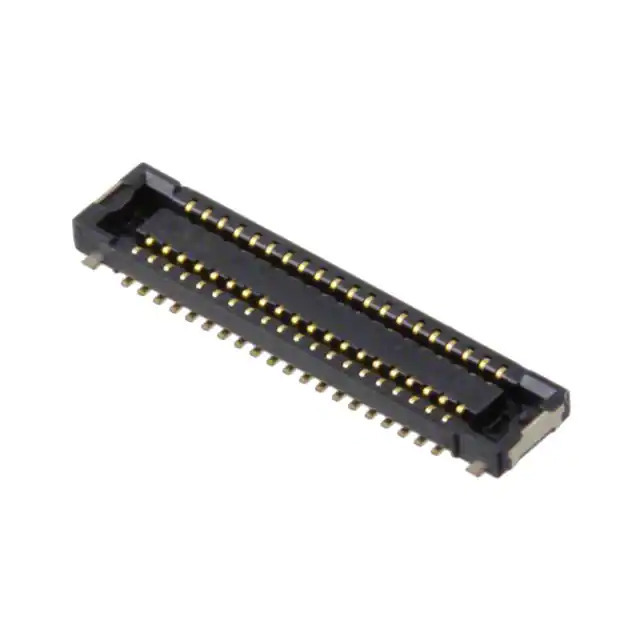

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series A4S
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type Socket, Center Strip Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness -
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE540
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377923-AXE540124
Ultra Librarian 3D Model Ultra Librarian AXE540124 CAD Model

Description

The 1377923-AXE540124 is a rectangular connector array from Panasonic Electric Works.

  • Series: A4S
  • Connector Type: Socket
  • Number of Positions: 40
  • Number of Rows: 2
  • Mated Stacking Heights: 0.8mm, 1mm
  • Pitch: 0.016" (0.40mm)
  • Mounting Type: Surface Mount
  • Height Above Board: 0.030" (0.75mm)
  • Product Status: Obsolete
