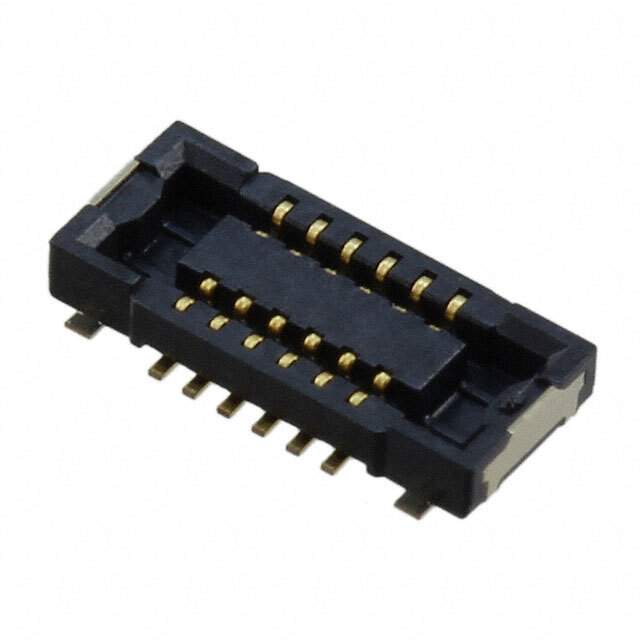

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Cut Strip
Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 12
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1020914-AXE512127A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXE512127A CAD Model

Description

The Panasonic Electric Works AXE512127A is a socket, center strip contacts type electronic component that has a medium popularity.

  • Packaging: cut strip
  • Number of Positions: 12
  • Pitch: 0.016" (0.40mm)
  • Features: solder retention
  • Connector Type: socket, center strip contacts
  • Number of Rows: 2
  • Contact Finish: gold
  • Mated Stacking Heights: 0.8mm, 1mm
  • Height Above Board: 0.030" (0.75mm)
  • Mounting Style: SMD (SMT)
