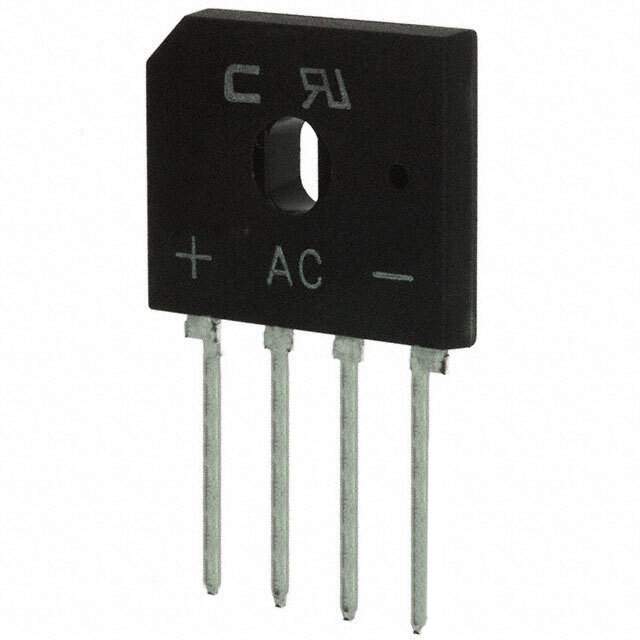

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tube
Part Status Obsolete(EOL)
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 4A
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 775022-GBU4M-G
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBU4M-G CAD Model

Description

The Comchip Technology GBU4M-G is a through-hole mounted, 4-SIP GBU packaged, single-phase diode that is a part of the Discrete Semiconductor Products category.

  • Current average rectified (Io): 4A
  • Voltage peak reverse (maximum): 1000V
