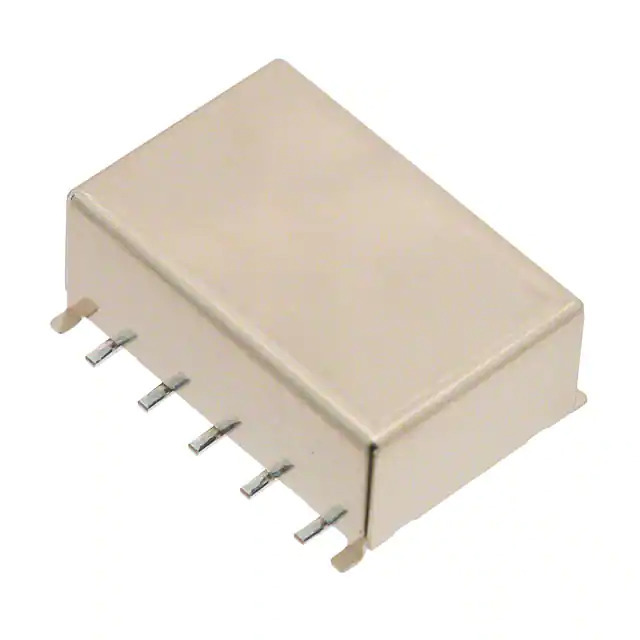

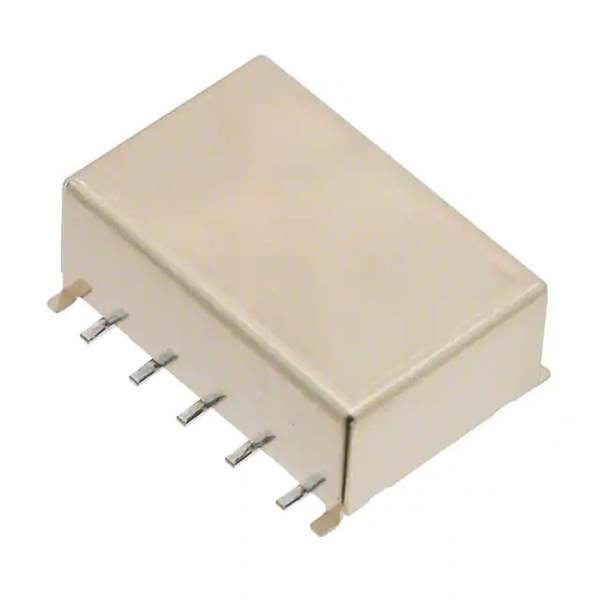

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic Electric Works
Series ARA
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 11.7 mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 30VDC - Max
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 4 ms
Release Time 4 ms
Features -
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Coil Power 140mW
Coil Resistance 1.03 kOhms
Base Product Number ARA200
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373501-ARA200A12
Ultra Librarian 3D Model Ultra Librarian ARA200A12 CAD Model

Description

The 1373501-ARA200A12 is a high-frequency (RF) relay from Panasonic Electric Works.

  • Series: ARA
  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 12VDC
  • Switching Voltage: 30VDC maximum
  • Contact Rating: 1 A
  • Coil Current: 11.7 mA
  • Package: Surface Mount
  • Termination Style: Gull Wing
  • Operate Time: 4 ms
  • Release Time: 4 ms
  • Coil Resistance: 1.03 kOhms
