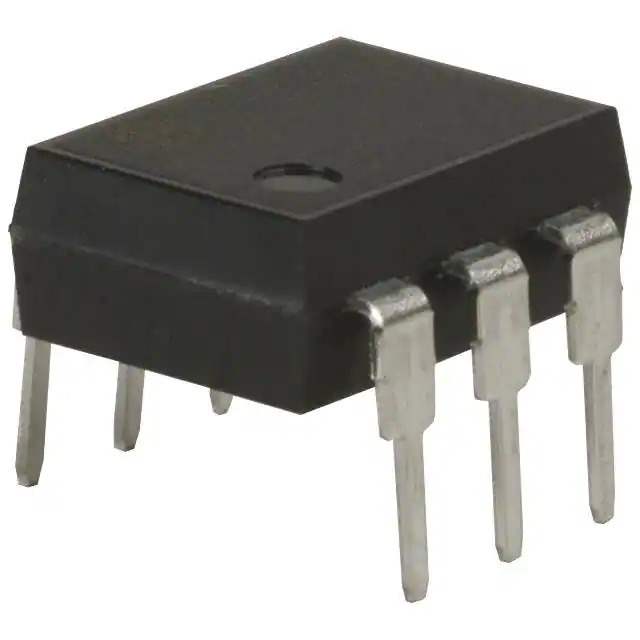

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 150 mA
On-State Resistance (Max) 16 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number AQV25
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564362-AQV254
Ultra Librarian 3D Model Ultra Librarian AQV254 CAD Model

Description

The PhotoMOS™ AQV254 is a versatile solid-state relay that offers both AC and DC output types.

  • Circuit Configuration: It features a SPST-NO (1 Form A) circuit configuration with a maximum on-state resistance of 16 Ohms.
  • Load Characteristics: This relay has a load current of 150 mA and a voltage load range of 0 V to 400 V, making it suitable for a wide range of applications.
  • Input Voltage: The input voltage required is 1.14VDC, making it ideal for low voltage systems.
  • Mounting & Package: The AQV254 is mounted through a hole and comes in a 6-DIP package.
  • Series & Manufacturer: It is part of the PhotoMOS™ AQV series by Panasonic, known for its high-quality electronic components.
  • Applications: This relay is commonly used in applications such as industrial control, telecommunications, and medical equipment.
  • Description: With its reliable performance and compact design, the AQV254 is a popular choice for solid-state relay applications.
