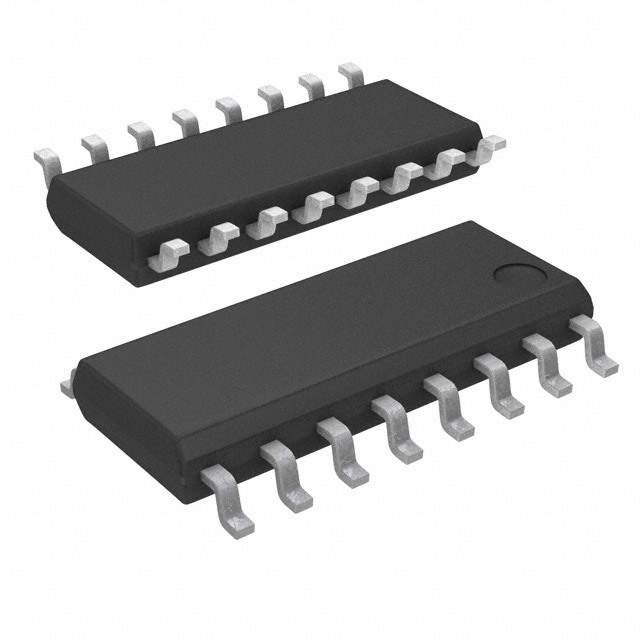

AQS221R2S Real Image
Same model may have multiple batches, images only for reference.

AQS221R2S

Part No AQS221R2S
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY OPTO 40V 0.16A SOP16 / Solid State Relay 50mA 1.5V DC-IN 0.16A 40V AC/DC-OUT 16-Pin SOP Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQS
Packaging Tube
Circuit 4PST (4 Form A)
Output Type AC, DC (RF)
On-State Resistance (Maximum) 1.25 Ohm
Load Current 160mA
Voltage - Input 1.25VDC
Voltage - Load 0 ~ 40 V
Mounting SMD
Termination Style Gull Wing
Package 16-SOIC (0.173", 4.40mm Width)
Manufacturer Package 16-SOP
Relay Type Relay
Win Source Part Number 768729-AQS221R2S
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name AQS221R2S
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQS221R2S CAD Model

Description

The Panasonic Electric Works AQS221R2S is a 4PST (4 Form A) AC/DC (RF) relay.

  • Load Current: 160mA
  • Voltage Range: 0-40V
  • On-State Resistance (maximum): 1.25 Ohm
  • Package: 16-SOIC (0.173", 4.40mm Width)
  • Mounting: SMD
  • Termination Style: Gull wing
  • Introduction Date: May 01, 2006
  • EOL Date: 2029
  • Series: PhotoMOS AQS
  • Category: Relays
  • Popularity: Medium
  • Status: Limited Supply and Demand
