Same model may have multiple batches, images only for reference.

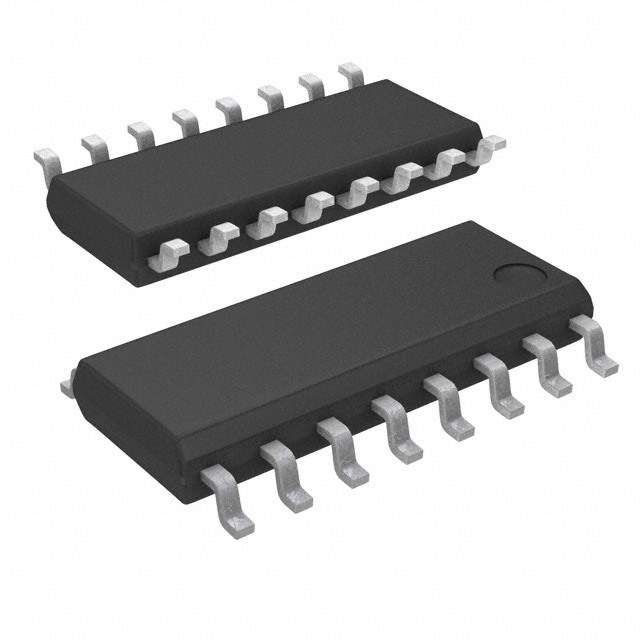

AQS221FN2S Real Image
Same model may have multiple batches, images only for reference.

AQS221FN2S

Part No AQS221FN2S
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY OPTO 40V 0.06A SOP16 / Solid State Relay 8.5mA 4V DC-IN 0.06A 40V AC/DC-OUT 4-Pin SSOP Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQS
Packaging Tube
Circuit 4PST (4 Form A)
Output Type AC, DC (RF)
On-State Resistance (Maximum) 12.5 Ohm
Load Current 60mA
Voltage - Input 1.3VDC
Voltage - Load 0 ~ 40 V
Mounting SMD
Termination Style Gull Wing
Package 16-SOIC (0.173", 4.40mm Width)
Manufacturer Package 16-SOP
Relay Type Relay
Win Source Part Number 768726-AQS221FN2S
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name AQS221FN2S
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQS221FN2S CAD Model

Description

The AQS221FN2S is a PhotoMOS relay from Panasonic Electric Works.

  • Circuit: 4PST (4 Form A)
  • Load Current: 60mA
  • Voltage Load: 0 to 40V
  • Package: 16-SOIC (0.173", 4.40mm Width)
  • Mounting: Surface-mount technology (SMT)
  • Introduction Date: May 01, 2006
  • EOL Date: 2029
  • Popularity: Medium
  • Package Quantity: 50
