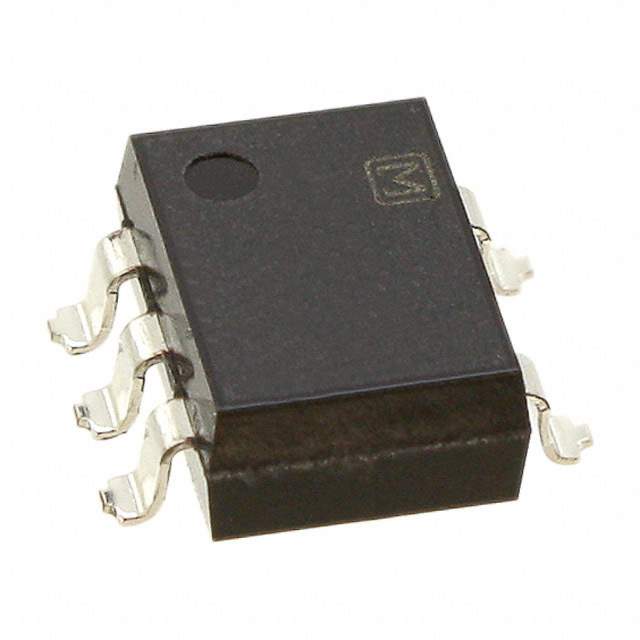

APV1122A Real Image
Same model may have multiple batches, images only for reference.

APV1122A

Part No APV1122A
Manufacturer Panasonic
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV PHVOLT 6-DIP SMD  /  Optoisolator Photovoltaic Output 5000Vrms 1 Channel 6-DIP SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Panasonic Electric Works
Package Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Turn On / Turn Off Time (Typ) 400µs, 100µs
Input Type DC
Output Type Photovoltaic
Voltage - Output (Max) 8.7V
Current - Output / Channel 14µA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 6-SMD (5 Leads), Gull Wing
Supplier Device Package 6-DIP SMD
Base Product Number APV1122
MSL Level Not Applicable
ECCN EAR99
HTSUS 8542.39.0001
Other Names Q5706484
Standard Package 50
Win Source Part Number 1206536-APV1122A
Ultra Librarian 3D Model Ultra Librarian APV1122A CAD Model

Description

The APV1122A is an optoisolator-transistor, photovoltaic output device from Panasonic Electric Works.

  • Mounting Technology: Surface Mount (SMT)
  • Package: 6-SMD (5 Leads), Gull Wing
  • Category: Isolators
  • Packaging: Tube
  • Units Per Tube: 50
  • Input Type: DC
  • Forward Current: 50 mA
  • Output Type: Photovoltaic
  • Channels: 1
  • Temperature Range: -40°C to 85°C
