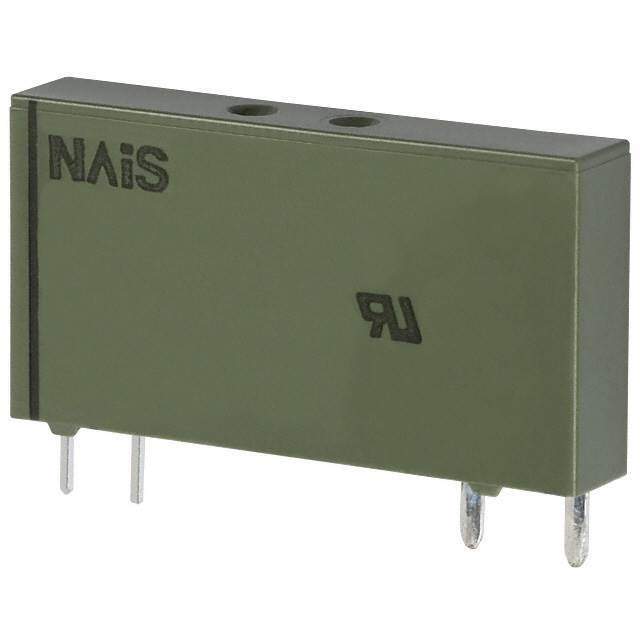

APE10006 Real Image
Same model may have multiple batches, images only for reference.

APE10006

Part No APE10006
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 6A 6V
Datasheet
APE10006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 28mA
Coil Voltage 6VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 6A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 3.96 VDC
Turn Off Voltage (Min) 0.3 VDC
Operate Time 8ms
Release Time 4ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 170 mW
Coil Resistance 212 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 56492-APE10006
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian APE10006 CAD Model

Description

APE10006: Advanced Proximity Sensor

The APE10006 is an advanced proximity sensor designed for precise distance measurement and motion detection across various industrial and consumer applications. Its enhanced features position it as an essential component for intelligent systems.

  • Security systems
  • Factory automation
  • Smart appliances
  • Gesture recognition systems
Features and Benefits:
  • High accuracy and fast response
  • Low power consumption suitable for battery-powered devices
  • Robust performance in dynamic environments
  • Easy to integrate into versatile applications

The APE10006 promises consistent and reliable operation, making it a valuable addition to advanced sensing solutions.
