Same model may have multiple batches, images only for reference.

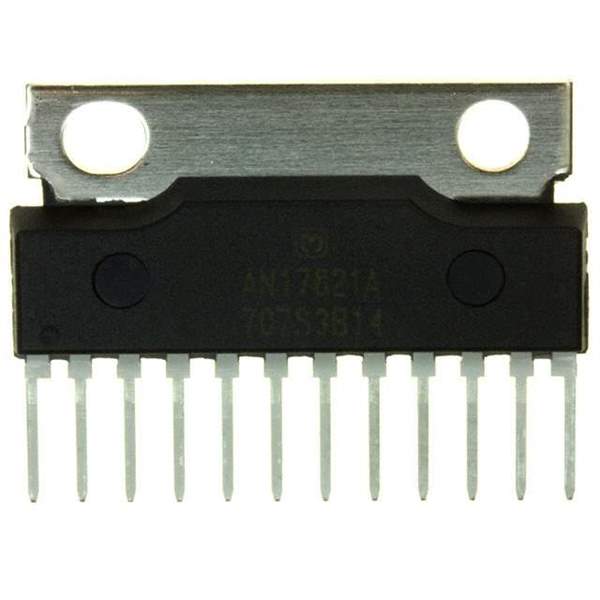

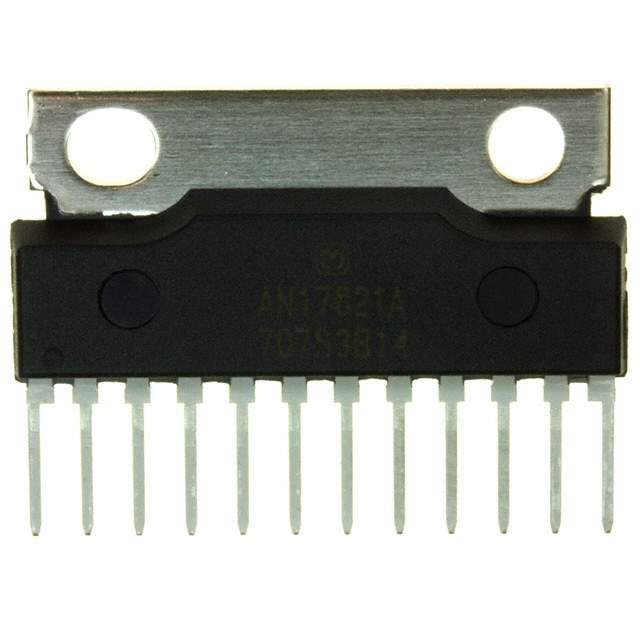

AN17821A Real Image
Same model may have multiple batches, images only for reference.

AN17821A

Part No AN17821A
Manufacturer Panasonic
Catalog Linear - Amplifiers - Audio
Description IC AUDIO AMP 5W 2CH SIL-12 / Audio Amp Speaker 2-CH Stereo 5W Class-AB 12-Pin(12+Tab) HSIP
Datasheet
AN17821A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Panasonic Electronic Components
Packaging Tube
Part Status Obsolete(EOL)
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 5W x 2 @ 8 Ohm
Operating Supply Voltage 3.5 V ~ 13.5 V
Features Standby, Volume Control
Mounting Style Through Hole
Operating Temperature Range -25°C ~ 70°C (TA)
Manufacturer Package 12-SIL
Package 12-SIP + Tab
Win Source Part Number 768510-AN17821A
Popularity Medium
Supply and Demand Status Balance
Family Name AN17821
Introduction Date November 07, 2006
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AN17821A CAD Model

Description

The AN17821A is an integrated circuit (IC) manufactured by Panasonic Electronic Components.

  • Channels: 2-channel (stereo)
  • Class: AB amplifier
  • Package: 12-SIP + Tab
  • Features: Standby, Volume control
  • Mounting Type: Through-hole
  • Operating Supply Voltage: 3.5V to 13.5V
  • Maximum Output Power: 5W x 2 @ 8 Ohm
  • Status: Obsolete (EOL)
  • Alternative Parts: TDA7297, TDA7266D13TR, TDA7266, TDA7266P
  • Supply and Demand Status: Balanced
  • Estimated EOL Date: Obsolete / End of Life
