The LM4930ITLX/NOPB is an integrated audio subsystem designed by Texas Instruments, a leader in semiconductor solutions. This advanced integrated circuit (IC) is well-suited for mobile phones, PDAs, laptops, and other portable audio devices, where space and power efficiency are of paramount importance.

Key Features

• High-Quality Audio: The LM4930 includes a high-quality stereo headphone amplifier, a mono BTL earpiece amplifier, and a 150mW mono loudspeaker amplifier to provide a range of audio output options for various listening scenarios.
• Low Voltage Operation: Designed to operate on a supply voltage as low as 2.2V, the LM4930ITLX/NOPB is optimized for battery-powered devices, ensuring minimal power consumption while maintaining excellent audio performance.
• Advanced Pop & Click Circuitry: Equipped with advanced pop and click suppression circuitry, the LM4930 minimizes noise during power-up and shutdown, providing a smoother audio experience.
• Flexible Inputs and Outputs: The device supports multiple audio inputs and outputs, enabling designers to create versatile audio systems that can cater to a wide range of user needs.
• Integrated Protection: The IC includes thermal shutdown protection to prevent damage from overheating, ensuring reliability and longevity of the audio subsystem.

Technical Specifications

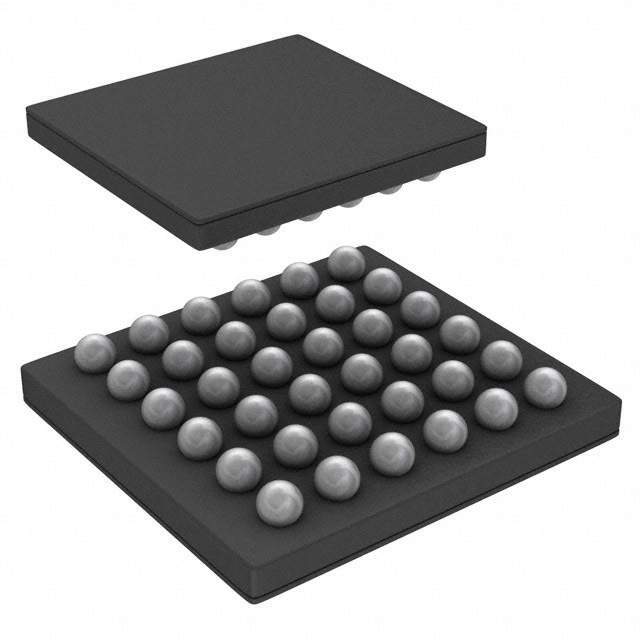

The LM4930ITLX/NOPB operates within an ambient temperature range of -40°C to 85°C and comes in a compact 36-bump micro SMDxt package. It features a low quiescent current and a shutdown mode that significantly reduces power consumption when not in use.

Applications

This audio subsystem is ideal for a variety of applications where space and power efficiency are crucial. It is often used in portable electronic devices such as:

• Mobile phones and smartphones
• Personal digital assistants (PDAs)
• Laptop and notebook computers
• Portable media players

With its combination of audio quality, power efficiency, and integrated features, the LM4930ITLX/NOPB from Texas Instruments represents a sophisticated solution for designers looking to enhance the audio capabilities of their portable electronic devices.
