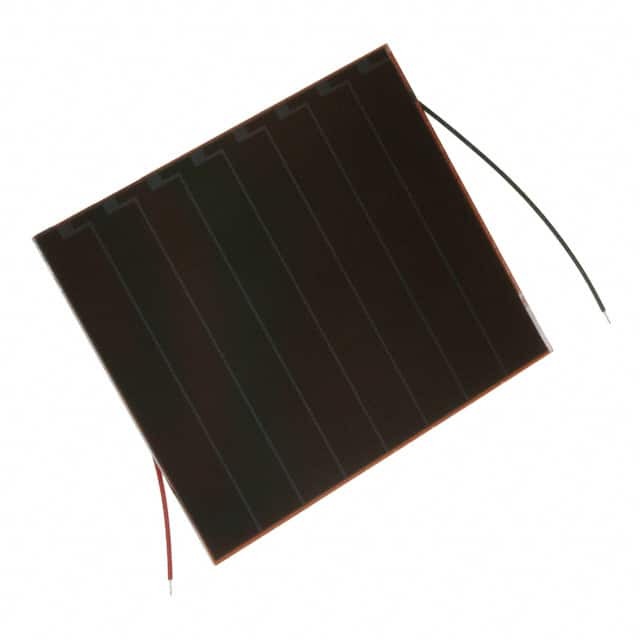

AM-1815CA-DGK-E Panasonic
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Solar Cells
Mfr Panasonic - BSG
Series Amorton
Package Box
Power (Watts) - Max 126 µW
Current @ Pmpp 42 µA
Voltage @ Pmpp 3 V
Current - Short Circuit (Isc) 47 µA
Type Amorphous
Voltage - Open Circuit 4.9 V
Temperature Range - Operating -10°C ~ 60°C
Package / Case Cells
Dimension 2.287" L x 1.913" W x 0.043" H (58.10mm x 48.60mm x 1.10mm)
Base Product Number AM-1815CA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.43.0080
Win Source Part Number 1316124-AM-1815CA-DGK-E
Ultra Librarian 3D Model Ultra Librarian AM-1815CA-DGK-E CAD Model

Description

The Amorton Amorphous Solar Cell is a high-quality solar cell that is perfect for use in a variety of applications.

  • Power Output: Up to 126 µW
  • Voltage Output: 3 V
  • Open Circuit Voltage: 4.9 V
  • Package: Box
  • Package/Case: Cells
  • Operating Temperature Range: -10°C to 60°C
  • Dimensions: 2.287" L x 1.913" W x 0.043" H (58.10mm x 48.60mm x 1.10mm)
  • Manufacturer: Panasonic - BSG
  • Series: AM-1815CA
