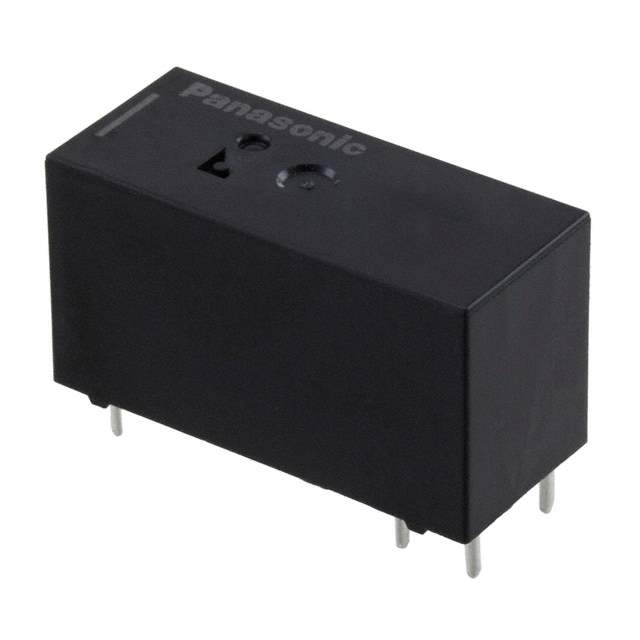

ALZ52F12 Real Image
Same model may have multiple batches, images only for reference.

ALZ52F12

Part No ALZ52F12
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number ALZ52F
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Part Number ALZ52F12-ND,255-4087-5
Standard Package 20
Win Source Part Number 1323862-ALZ52F12
Ultra Librarian 3D Model Ultra Librarian ALZ52F12 CAD Model

Description

The ALZ52F12 from Panasonic Electric Works is a power relay designed for use in electronic devices.

  • Contact Rating: 16A
  • Switching Voltage: 440VAC
  • Mounting Package: through-hole
  • Standard Package: 20
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 ohms
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver tin oxide (AgSnO)
  • Operating Temperature: -40°C to 105°C
  • Seal Rating: fully sealed
