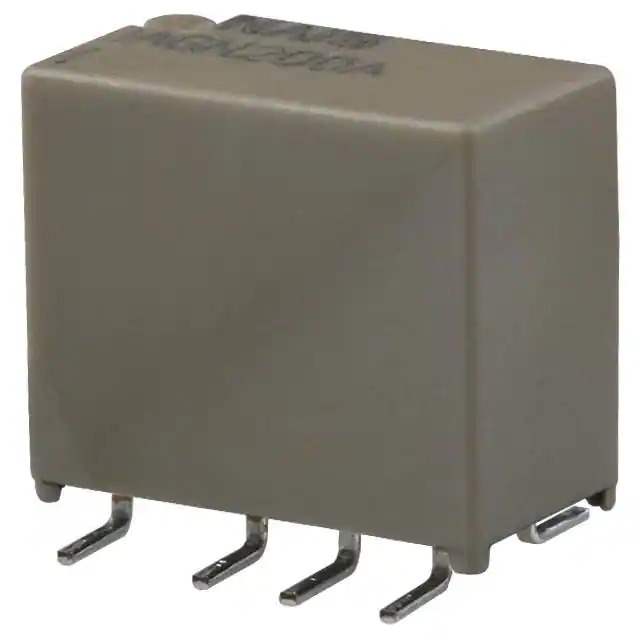

AGN200A03X Real Image
Same model may have multiple batches, images only for reference.

AGN200A03X

Part No AGN200A03X
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 3VDC / Telecom Relay DPDT (2 Form C) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series AGN
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 46.7 mA
Coil Type Non Latching
Termination Style Gull Wing
Must Operate Voltage 2.25 VDC
Must Release Voltage 0.3 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type Telecom
Coil Resistance 64.2 Ohms
Base Product Number AGN200
Standard Package 500 pcs
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 911252-AGN200A03X
Ultra Librarian 3D Model Ultra Librarian AGN200A03X CAD Model

Description

The AGN200A03X is a DPDT (2 Form C) telecom relay from Panasonic.

  • Coil Voltage: 3VDC
  • Coil Current: 46.7 mA
  • Contact Rating: 1A
  • Switching Voltage: 125VAC and 110VDC
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Contact Material: Silver Palladium and Gold
  • Standard Package: 500 pcs
  • Operating Temperature: -40°C to 85°C
  • Series: AGN
  • Packaging: Tape and Reel
  • Status: Active
