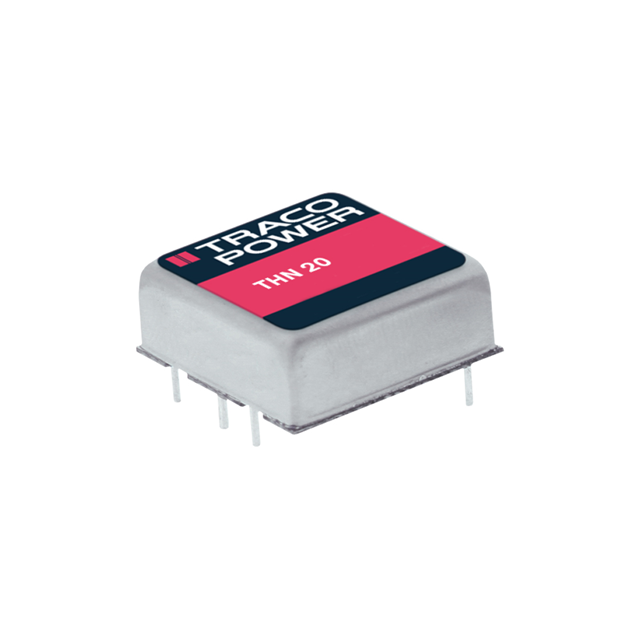

Same model may have multiple batches, images only for reference.

THN 20-1213

Name: THN 20-1213
Brand: Traco Power
SKU: 1336022
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THN 20-1213
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 20W / Isolated Module DC DC Converter 1 Output 15V 1.33A 9V - 18V Input
Datasheet	THN 20-1213 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Current - Output (Max)	1.33A
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN 20-1213-ND,THN20-1213
Standard Package	10
Win Source Part Number	1336022-THN 20-1213
Ultra Librarian 3D Model	Ultra Librarian THN 20-1213 CAD Model

Alternative Products

Description

The Traco Power THN 20-1213 is an isolated module DC-DC converter.

Power Rating: 20 watts
Voltage Isolation: 1.5 kV
Features: Remote on/off, overvoltage protection (OVP), and short circuit protection (SCP)
Efficiency: 89%
Single Output: Maximum output current of 1.33A
Output Voltage: 15V
Input Voltage Range: 9V to 18V
Application: ITE (Commercial)
Mounting: Through-hole
Package: 6-DIP module
Operating Temperature Range: -40°C to 75°C with derating
ROHS3 Compliant: Yes
ECCN: EAR99
