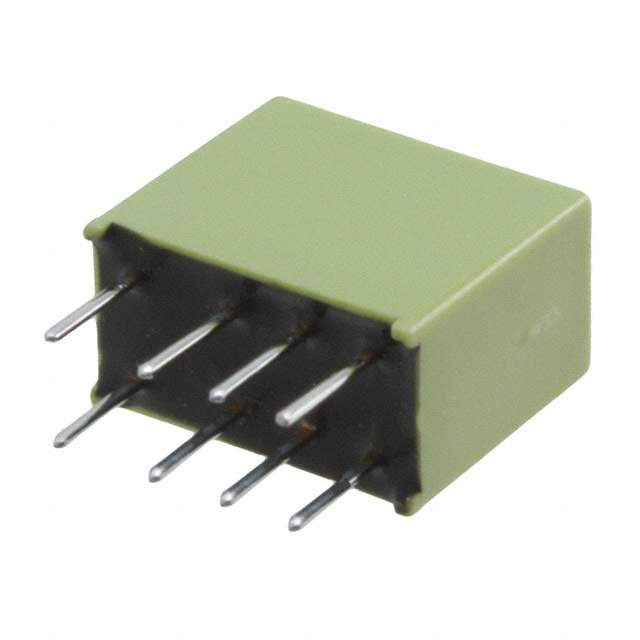

AGN20024 Real Image AGN20024 real image17472
Same model may have multiple batches, images only for reference.
AGN20024 Real Image AGN20024 real image17472
AGN20024 Real Image AGN20024 real image17472
Same model may have multiple batches, images only for reference.

AGN20024

Part No AGN20024
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description ULTRA-SMALL PACKAGE SLIM POLARIZED RELAY | RELAY TELECOM DPDT 1A 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 9.6mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 4ms
Release Time 4ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type Telecom
Coil Resistance 2.5 kOhms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1142930-AGN20024
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AGN20024 CAD Model

Description

The AGN20024 is a DPDT (2 Form C) telecom relay manufactured by Panasonic Electric Works. Bold the product name (e.g., BAV99S,135 → AGN20024) and manufacturer (e.g., Nexperia USA Inc. → Panasonic Electric Works).

  • Coil Voltage: 24VDC
  • Contact Rating: 1A
  • Switching Voltage: 125VAC
  • Switching Voltage: 110VDC
