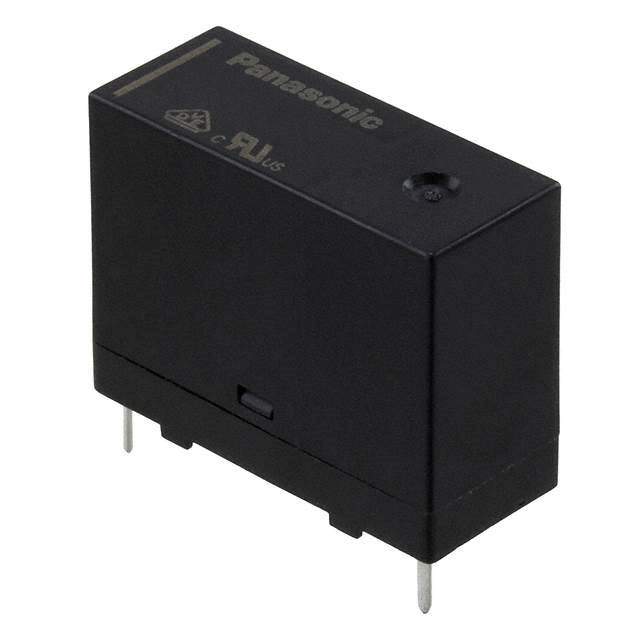

ADW1112HLW Real Image
Same model may have multiple batches, images only for reference.

ADW1112HLW

Part No ADW1112HLW
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DW-H
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Coil Current 16.7 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9.6 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number ADW1112
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-5334
Standard Package 100
Win Source Part Number 976664-ADW1112HLW
Ultra Librarian 3D Model Ultra Librarian ADW1112HLW CAD Model

Description

The Panasonic Electric Works ADW1112HLW is a latching power relay that has a high popularity.

  • Contact Rating: 16A
  • Switching Voltage: 277VAC
  • Coil Voltage: 12VDC
  • Coil Resistance: 720Ω
  • Operate Time: 15ms
  • Release Time: 15ms
  • Mounting: Through-hole
  • Protection: Sealed for flux protection
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99 compliant
  • Suitable for: Use in electronic devices that require high power switching capabilities
