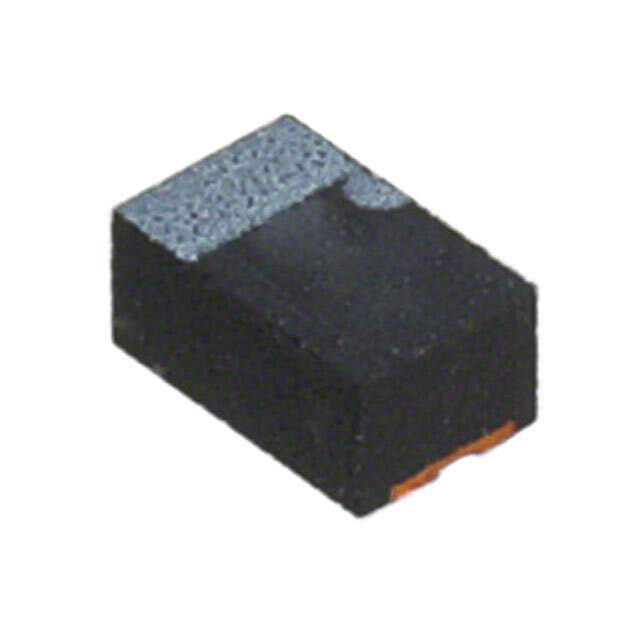

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Capacitance 22μF
Tolerance ±20%
Voltage - Rated 6.3V
Type Molded
ESR (Equivalent Series Resistance) 150mOhm at 100kHz
Temperature Range - Operating -55°C ~ 85°C
Lifetime at Temp. 1000 Hrs at 85°C
Mounting Style SMD
Manufacturer Package 0805
Parts Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Size Code S09
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1129706-6TPU22MSI
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6TPU22MSI CAD Model

Description

The Panasonic Electronic Components 6TPU22MSI is a 22μF, 6.3V rated molded capacitor with a tolerance of ±20%.

  • Manufacturer: Panasonic Electronic Components
  • Capacitance: 22μF
  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • Lead Spacing: Not specified
  • ESR @ 100kHz: 150mOhm
  • Manufacturer Package: 0805
  • Height: 0.039" (1.00mm)
  • Operating Temperature: -55°C to 85°C
  • Popularity: Medium
  • Supply and Demand: Balanced
