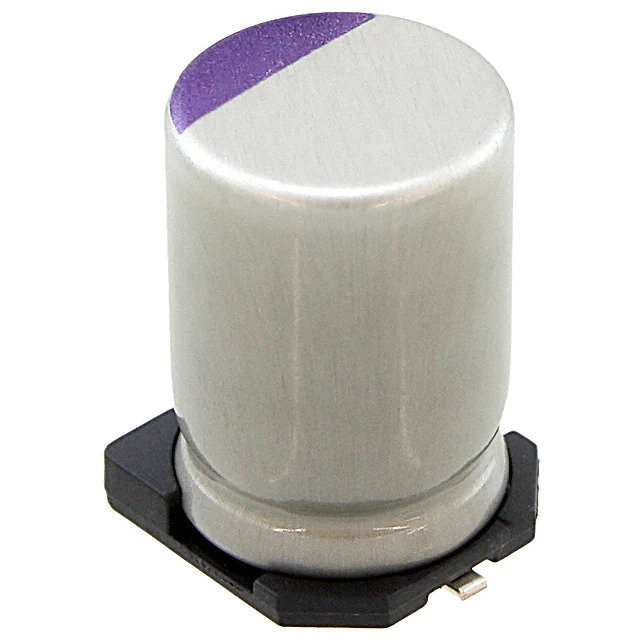

Same model may have multiple batches, images only for reference.

6SVP470M

Name: 6SVP470M
Brand: Panasonic
SKU: 1359576
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6SVP470M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 470UF 20% 6.3V SMD / 470 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 15mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVP
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	6.3 V
ESR (Equivalent Series Resistance)	15mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	210.5 mA @ 120 Hz
Ripple Current @ High Frequency	4.21 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	6SVP
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359576-6SVP470M
Ultra Librarian 3D Model	Ultra Librarian 6SVP470M CAD Model

Description

The 1188356 is a polymer capacitor from Panasonic Electronic Components.

Series: OS-CON™ SVP
Capacitance: 470 µF
Voltage Rating: 6.3 V
Application: General Purpose
Temperature Range: -55°C to 105°C
ESR: 15 mOhm
Ripple Current (Low Frequency): 210.5 mA @ 120 Hz
Ripple Current (High Frequency): 4.21 A @ 100 kHz
Package Style: Radial, Can
Mounting: Surface Mount
Diameter: 0.315 inches (8.00 mm)
Height: 0.472 inches (12.00 mm)
Surface Mount Land Size: 0.327 inches L x 0.327 inches W (8.30 mm x 8.30 mm)
Lifetime: 2000 hours @ 105°C
REACH: Unaffected
Product Status: Active
Packaging: Tape and Reel
