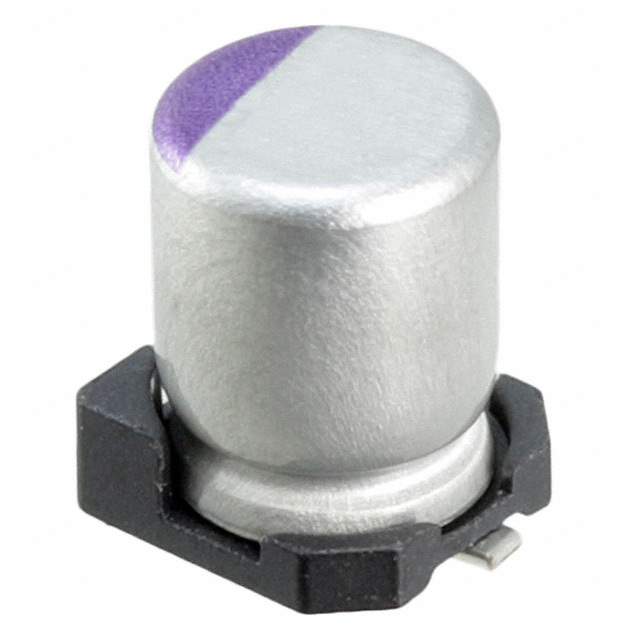

6SVP22M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 22μF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 200mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 37mA at 120Hz
Ripple Current at High Frequency 740mA at 100kHz
Parts Dimension 0.157" Dia (4.00mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129697-6SVP22M
Manufacturer Homepage www.ssdc-jp.com/eng/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 6SVP22M CAD Model

Description

The 6SVP22M is a surface mount polymer capacitor from Panasonic Electronic Components.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • Voltage Rating: 6.3V
  • ESR (Equivalent Series Resistance): 200mOhm
  • Temperature Range: -55°C to 105°C
  • Ripple Current: 37mA @ 120Hz and 740mA @ 100kHz
  • Applications: General-purpose
  • Popularity: Medium
  • Supply and Demand Status: Limited
